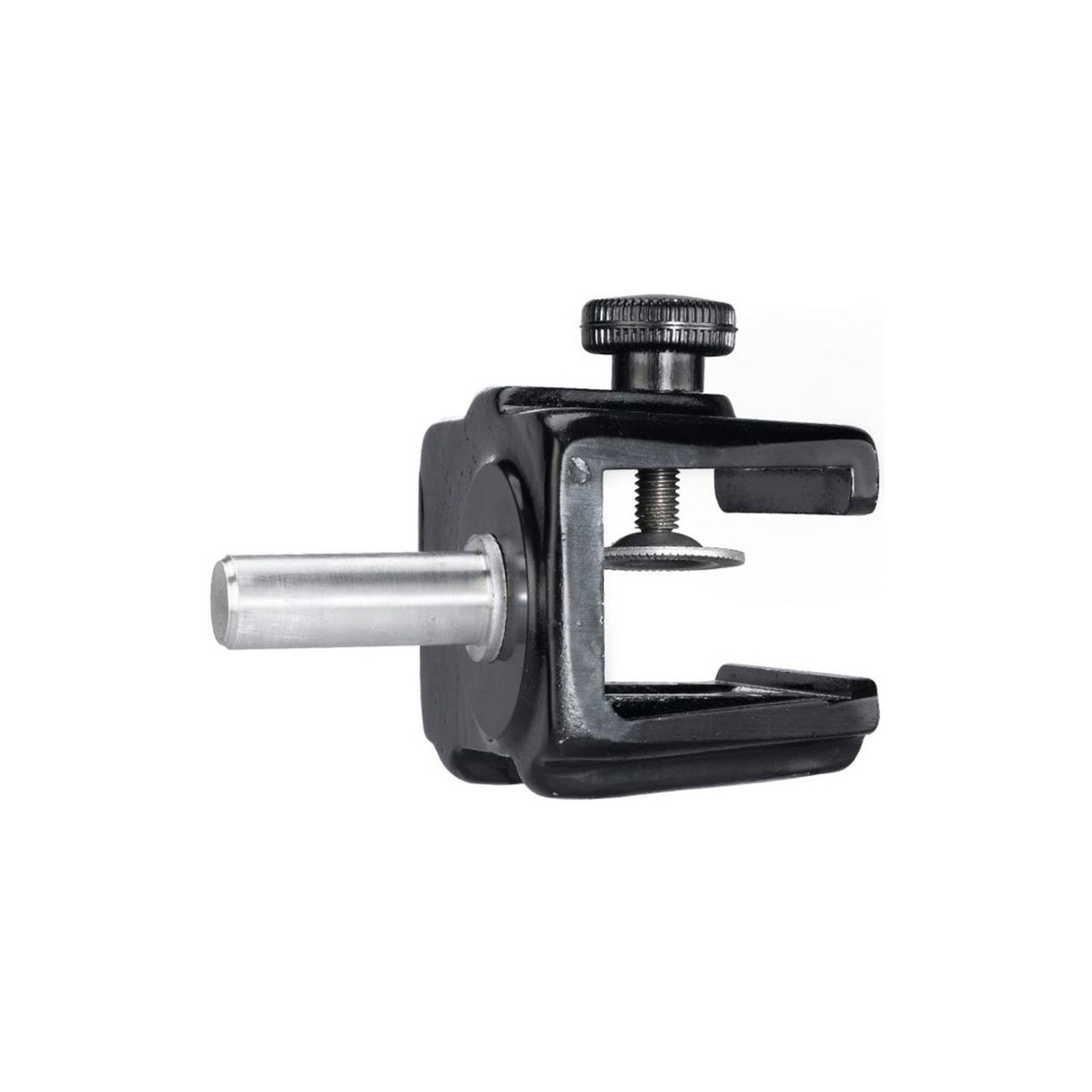

Topcon 56833 Manhole Drop Bracket for Pipe Lasers

Set Your Pipe Laser from Any Manhole with the Topcon 56833 Drop Bracket

The Topcon 56833 Manhole Drop Bracket gives contractors a fast, rigid mounting solution for positioning TP-L4 and TP-L5 pipe lasers directly inside existing or newly installed manholes. When you need to shoot grade from an access point rather than setting up inside the pipe run, this bracket eliminates improvised setups and delivers the repeatable, lock-tight positioning your crew needs to hit grade on the first pull. Built to Topcon's professional standards, the 56833 pairs with a transit mount to create a stable instrument platform that holds your laser on-grade through shifting conditions on active jobsites.

Overview & Jobsite Applications

Gravity flow sewer and stormwater projects routinely require laser setups at manhole locations — whether you're establishing invert elevation at a junction, verifying fall through a long run, or setting up for pipe bursting and CIPP liner installations. The 56833 drop bracket addresses each of these scenarios by suspending your Topcon pipe laser at the precise height and angle dictated by your grade sheet. The bracket works in conjunction with a standard transit mount, giving your laser a secure, adjustable platform that remains fixed even when crew members are working around the manhole. This is especially valuable on renovation projects where access is restricted to the manhole itself and in-pipe positioning is not practical.

Key Specifications

• Model Number: Topcon 56833
• Compatible Instruments: Topcon TP-L4G, TP-L4B, TP-L5, TP-L5B pipe lasers (red and green models)
• Mount Interface: Standard transit mount compatible
• Application: Manhole drop installation for pipe laser grade and alignment control
• Build: Heavy-duty construction for professional contractor use
• Manufacturer: Topcon Positioning Systems

Key Features

• Engineered specifically for TP-L4 and TP-L5 series pipe lasers — no adaptation hardware required
• Combines with transit mount for a rigid, vibration-resistant instrument platform
• Enables laser positioning at manholes where in-pipe setup is not possible or practical
• Supports accurate slope verification and pipe alignment in gravity flow systems
• Durable construction stands up to repeated use in wet, muddy trench and manhole environments
• Compact design for straightforward transport and storage alongside your pipe laser kit

Job Applications

Gravity Sewer New Construction: Set the 56833 bracket at a manhole hub to establish a clean laser sight line down the sewer run. Your crew can verify invert grade at each pipe joint without repositioning the instrument.

CIPP & Pipe Lining Prep: Before liner installation, use the drop bracket to shoot a grade check from the upstream manhole. Confirm existing pipe slope meets lining spec before the liner crew mobilizes.

Storm Drain Tie-Ins: When connecting new laterals to existing storm infrastructure at a manhole, the 56833 gives you a fixed laser reference to align the new pipe run back to your design grade.

Pipe Bursting & Trenchless Renovation: Trenchless work often limits instrument access to manholes only. The drop bracket lets you maintain a continuous laser grade reference throughout the burst or pull without entering the pipe corridor.

Compatible Accessories

• Topcon TP-L4G Green Pipe Laser
• Topcon TP-L5B Pipe Laser
• Topcon Transit Mount for Pipe Lasers
• Topcon Pipe Laser Receiver / Detector
• Topcon Pipe Laser Carrying Case

Related Guides

• How to Set Up a Pipe Laser at a Manhole: Step-by-Step Guide
• Topcon TP-L4 vs TP-L5: Which Pipe Laser Is Right for Your Project?
• Pipe Laser Accessories Buying Guide for Contractors
• Gravity Sewer Grade Control: Best Practices with Pipe Lasers

Frequently Asked Questions

What pipe lasers is the Topcon 56833 compatible with?

The 56833 Manhole Drop Bracket is designed for use with Topcon's TP-L4 and TP-L5 series pipe lasers, including both red and green beam models such as the TP-L4G, TP-L4B, TP-L5, and TP-L5B.

Does the 56833 bracket include a transit mount?

The 56833 is the drop bracket component. It is designed to work in combination with a compatible Topcon transit mount. If you do not already own a transit mount, contact our team at Express Tools to confirm the correct mount for your pipe laser model.

Can this bracket be used in deep manholes?

Yes. The drop bracket is engineered for manhole installations and provides a stable mounting platform at varying depths. For particularly deep structures, confirm your laser's sight-line range and any extension hardware requirements with your project engineer.

Why use a manhole drop bracket instead of setting up inside the pipe?

In renovation, trenchless, or restricted-access projects, direct in-pipe laser placement is often impractical or impossible. The manhole drop bracket lets you establish a precise grade reference from the access point, maintaining alignment accuracy without requiring entry into the pipe run itself.
