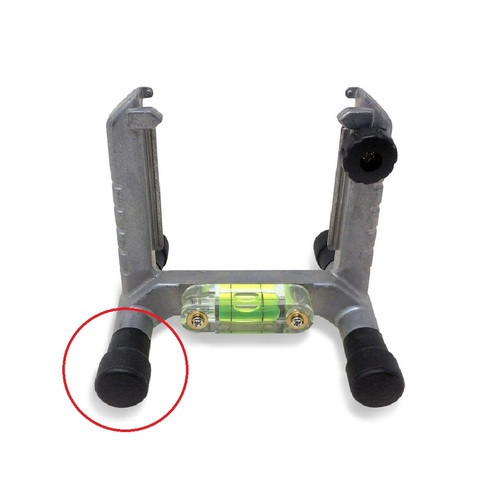

Topcon 3290632070 Pipe Laser Target Foot (1 each)

The Topcon 3290632070 Replacement Rubber Foot is a genuine OEM component designed to restore full stability and accuracy to your Topcon pipe laser target. Whether your existing foot has worn down, cracked, or gone missing on the job, this direct-replacement part gets your target back to spec so your crew can keep grading and aligning underground pipe with confidence. Sourced directly through Topcon's authorized parts network, it's the right fix the first time — no improvising with tape or makeshift shims.

Overview & Jobsite Applications

Pipe laser targets depend on consistent, repeatable contact with the pipe invert to deliver reliable grade and alignment readings. The rubber foot on the base of the target is the critical interface between the instrument and the pipe — it absorbs minor surface irregularities, prevents slippage on wet or muddy pipe interiors, and keeps the target centered during laser acquisition. When this component wears or breaks, even small shifts in target position translate directly into costly alignment errors. The Topcon 3290632070 restores that precise contact point using the same material spec and geometry as the factory-original part, ensuring your target sits true every time it's placed.

Key Specifications

• Part Number: 3290632070
• Manufacturer: Topcon Positioning Systems
• Component Type: Replacement Rubber Foot
• Application: Topcon Pipe Laser Targets
• Material: Durable contractor-grade rubber compound
• OEM Status: Genuine Topcon replacement part
• Fitment: Direct factory-spec replacement

Key Features

• Genuine Topcon OEM part — maintains factory tolerance and fit
• Rubber compound resists wear from abrasive pipe interiors and jobsite grime
• Provides non-slip grip on concrete, clay, PVC, and ductile iron pipe surfaces
• Absorbs minor surface irregularities to keep target seated level on pipe invert
• Prevents lateral shifting during laser beam acquisition
• Compact and lightweight — easy to carry as a spare in your instrument case
• Quick swap replacement — no special tools required for installation

Job Applications

Sanitary Sewer Installation: Maintain precise grade control when setting targets inside sewer pipe during trenching operations. A stable rubber foot keeps the target centered on the pipe invert through multiple placements as the crew advances.

Storm Drain Construction: Wet and silty conditions inside storm pipe demand a foot that grips reliably. The rubber compound on the 3290632070 holds position on damp pipe walls without slipping during laser reads.

Water Main Boring & Jacking: When precision matters in tight trenchless installations, a worn or missing target foot introduces unacceptable error. Replace it before the shot, not after the pipe is in the ground.

Irrigation & Utility Pipe Grading: For contractors grading pressure or gravity-flow systems in agricultural and commercial applications, keeping spare rubber feet in the instrument kit eliminates unnecessary downtime waiting on parts.

Compatible Accessories

• Topcon Pipe Laser Target — Standard
• Topcon TP-L5 Pipe Laser
• Topcon TP-L6 Pipe Laser
• Topcon Pipe Laser Carrying Case
• Topcon Pipe Laser Target Rod

Related Guides

• How to Set Up a Pipe Laser Target for Underground Sewer Work
• Maintaining Your Topcon Pipe Laser and Accessories
• Pipe Laser vs. Optical Level: Choosing the Right Tool for Grade Control
• Topcon Replacement Parts Guide for Contractors

Frequently Asked Questions

What pipe laser targets is the Topcon 3290632070 rubber foot compatible with?

The 3290632070 is a genuine Topcon OEM replacement part designed for use with Topcon pipe laser targets. Consult your target's documentation or contact Express Tools to confirm compatibility with your specific target model before ordering.

Can I install this rubber foot myself, or does it require a service center?

In most cases, the rubber foot is a field-replaceable component that does not require specialized tools or a factory service visit. However, always follow Topcon's installation guidance for your specific target model to ensure proper fitment and avoid affecting instrument calibration.

Why does a worn rubber foot affect my pipe laser accuracy?

The rubber foot is the physical contact point between your target and the pipe invert. If it's worn unevenly, cracked, or missing, the target can tilt or shift slightly during placement — small angular errors that translate into significant grade and alignment deviations over longer pipe runs. Replacing a worn foot is a low-cost way to protect the accuracy of your entire layout.

Should I keep a spare rubber foot on site?

Experienced crews typically carry at least one spare rubber foot alongside other small consumables in their instrument kit. Losing or damaging this part mid-job can halt pipe laying operations until a replacement arrives. Keeping a spare on hand is inexpensive insurance against unnecessary downtime.
