Topcon RL-H4C Self-Leveling Laser DB Kit with LS-80L Receiver - 313980752 (uses Alkaline Batteries)

Overview

The Topcon RL-H4C Self-Leveling Rotary Laser DB Kit (313980752) delivers reliable horizontal leveling and grading performance for residential contractors, landscapers, and concrete crews working across multiple jobsites. This alkaline battery-powered configuration eliminates charging infrastructure requirements—ideal for seasonal operations, equipment rental fleets, and remote work environments where electrical access is limited. The included LS-80L receiver provides 400-foot diameter working range with straightforward detection functionality, while the DB (Dry Battery) design uses standard alkaline D-cells available at any hardware store. Whether you're establishing foundation elevations, grading driveways, or setting fence lines, this kit provides professional-grade accuracy without the complexity or cost of rechargeable battery systems. Contractors who value equipment simplicity and immediate field serviceability will appreciate the operational flexibility this package provides.

Key Specifications

• Self-Leveling Range: ±5 degrees (automatic compensation)
• Leveling Accuracy: ±10 arc seconds (±1/16" at 100 feet)
• Working Diameter: 2,600 feet (800m) with receiver; 400 feet (120m) visible beam
• Environmental Rating: IP66 (dust-tight, water-resistant)
• Power Source: 4× D-cell alkaline batteries (60+ hours runtime)
• Rotation Speed: 600 RPM standard operation
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Laser Weight: 4.6 lbs (2.1 kg) with batteries installed
• Laser Classification: Class 2 (safe for normal use)

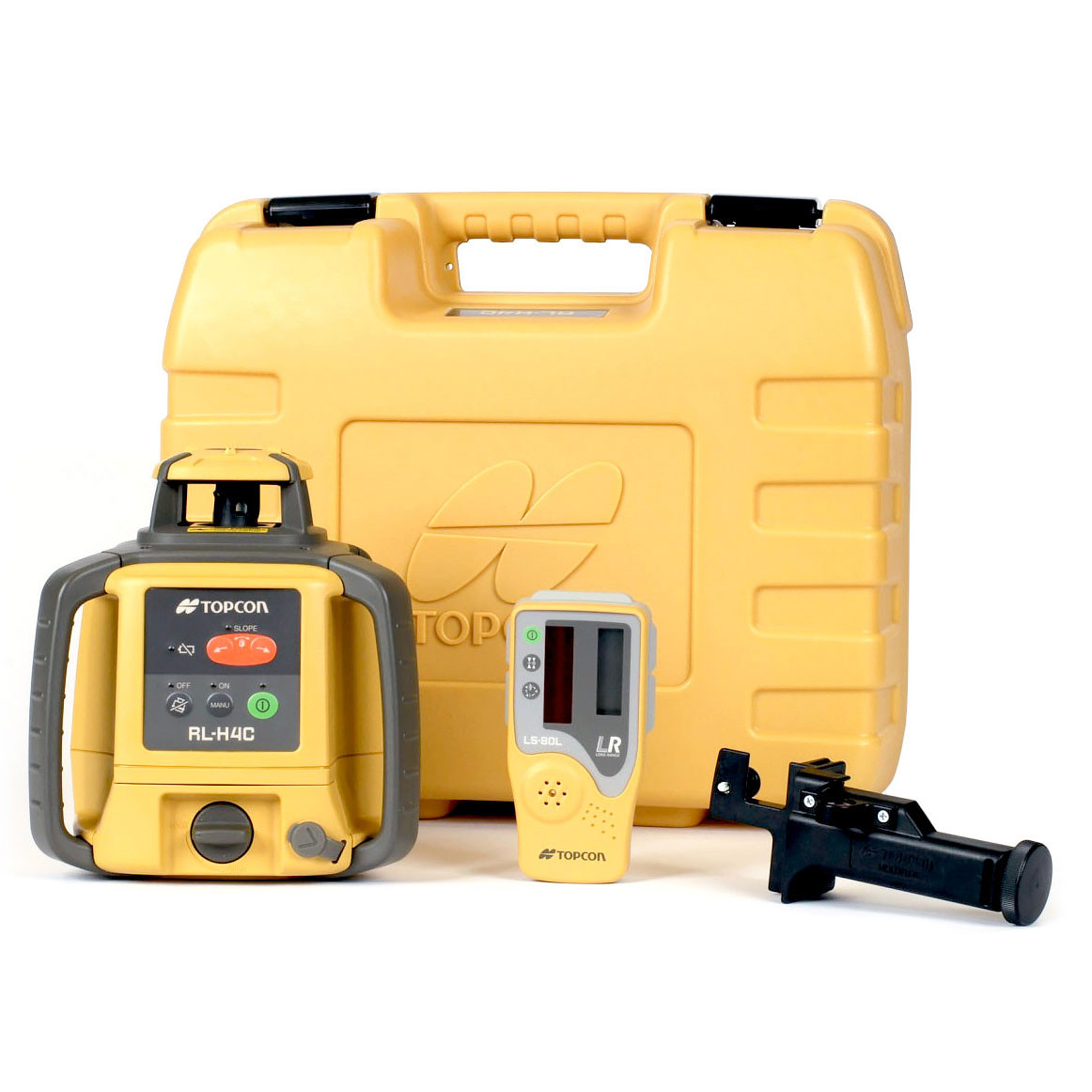

What's in the Kit

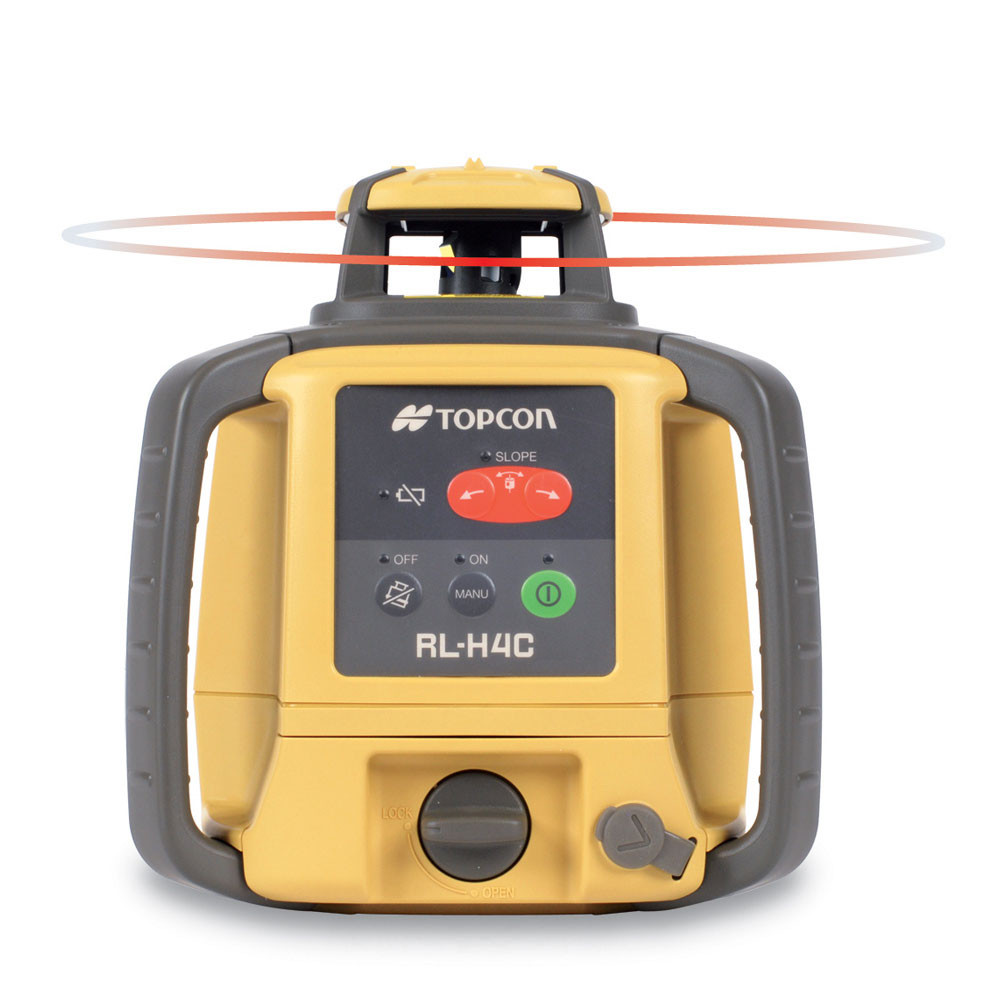

• Topcon RL-H4C Rotary Laser – horizontal self-leveling laser transmitter with integrated battery compartment
• LS-80L Laser Receiver – single-sided detector with visual and audible indicators, 400-foot working diameter
• Receiver Rod Clamp – universal mounting bracket for standard grade rods and measuring poles
• Alkaline Battery Holder – internal compartment housing for 4× D-cell batteries (batteries not included)
• Hard Carrying Case – impact-resistant storage case with custom foam insert protection
• Operator's Manual – setup instructions, calibration procedures, and troubleshooting guide
• Calibration Certificate – factory accuracy verification documentation

Job Applications

• Foundation Excavation & Layout – Establish consistent depth reference across foundation perimeters for accurate excavation control and footing elevation verification.
• Concrete Slab Preparation – Set screed rails and verify subgrade elevations before pouring garage floors, basement slabs, and flatwork installations.
• Landscape Grading & Drainage – Create proper slope for water runoff across lawns, walkways, and retention areas with continuous grade reference.
• Fence & Deck Installation – Maintain consistent post heights and deck framing elevations across uneven terrain without constant measurement adjustments.
• Suspended Ceiling Grid Installation – Establish level reference lines for commercial drop ceiling installations in renovation and new construction projects.
• Parking Lot & Driveway Grading – Monitor base material elevation and achieve specified drainage slopes during asphalt and concrete paving operations.
• Exterior Site Development – Control elevation consistency for retaining walls, paver patios, and hardscape features requiring precise leveling across extended distances.

Compatible Accessories

Upgrade Receivers: Works with Topcon LS-100D Digital Receiver (extended 500-foot range with LCD readout) and Topcon LS-B10 Machine Receiver (excavator/dozer mounting with dual-sided detection).

Remote Controls: Compatible with Topcon RC-40 Remote Control for wireless rotation speed adjustment and slope functionality up to 200 feet from laser position.

Mounting Equipment: Designed for use with Topcon Flat-Head Tripods, SECO Heavy-Duty Tripods, and elevator tripods featuring 5/8"-11 threaded mounting.

Grade Rods: Pairs with Lenker Direct Elevation Rods, Crain Aluminum Grade Rods, and standard surveying grade rods via included receiver clamp.

Related Guides

• How to Use a Rotary Laser for Site Grading & Excavation Control
• Topcon RL-H4C vs Spectra LL300: Alkaline Laser Comparison
• Understanding Laser Receiver Detection Range & Accuracy
• Topcon RL-H4C Error Codes & Troubleshooting →

Frequently Asked Questions

Can I upgrade this kit to rechargeable batteries later?

No, the RL-H4C DB model is designed exclusively for alkaline D-cell batteries and does not accept rechargeable battery packs. If you require rechargeable operation, consider the Topcon RL-H5A rechargeable configuration. The alkaline design eliminates battery degradation during storage—beneficial for seasonal contractors and rental operations where equipment sits idle between projects.

What's the actual battery life with alkaline D-cells?

Expect 60-70 hours of continuous operation with quality alkaline D-cell batteries at standard 600 RPM rotation speed. Runtime decreases in extreme cold temperatures (below 20°F) and when operating the laser at maximum brightness settings. Keep spare batteries on larger jobsites—the RL-H4C provides low-battery warnings approximately 30 minutes before shutdown, allowing time for replacement without losing your setup reference.

Is the LS-80L receiver adequate for excavation work?

The LS-80L provides basic on-grade/off-grade detection suitable for general excavation, trenching, and foundation work where approximate grade control is acceptable. For machine-mounted applications or projects requiring precise depth measurement, upgrade to the LS-100D digital receiver (numerical elevation readout) or LS-B10 machine receiver (dual-sided detection for excavator buckets).

Does this laser work for vertical layout or plumb applications?

No, the RL-H4C is a horizontal-only rotary laser without axis-tilt capability. It self-levels to create a horizontal reference plane but cannot be oriented vertically for wall alignment, column plumb checks, or vertical transfer applications. For dual-axis functionality, consider the Topcon RL-H5B dual-slope laser which offers both horizontal and vertical operation modes.
