Topcon RL-H5A Self-Leveling Laser PS.DB2 Kit with LS-80X Receiver, Measuring Rod INCHES and Tripod - 1021200-49-K2 (RECHARGEABLE)

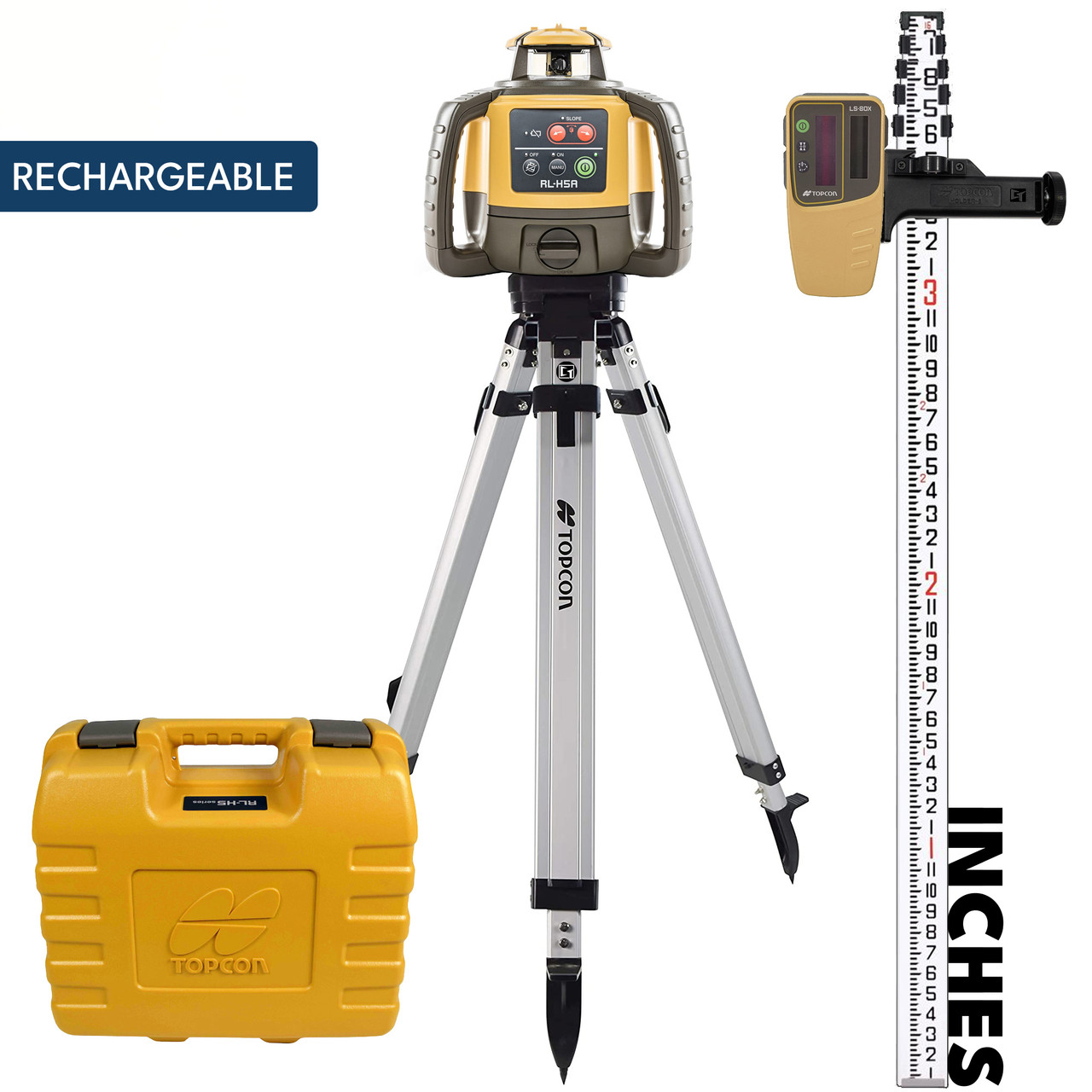

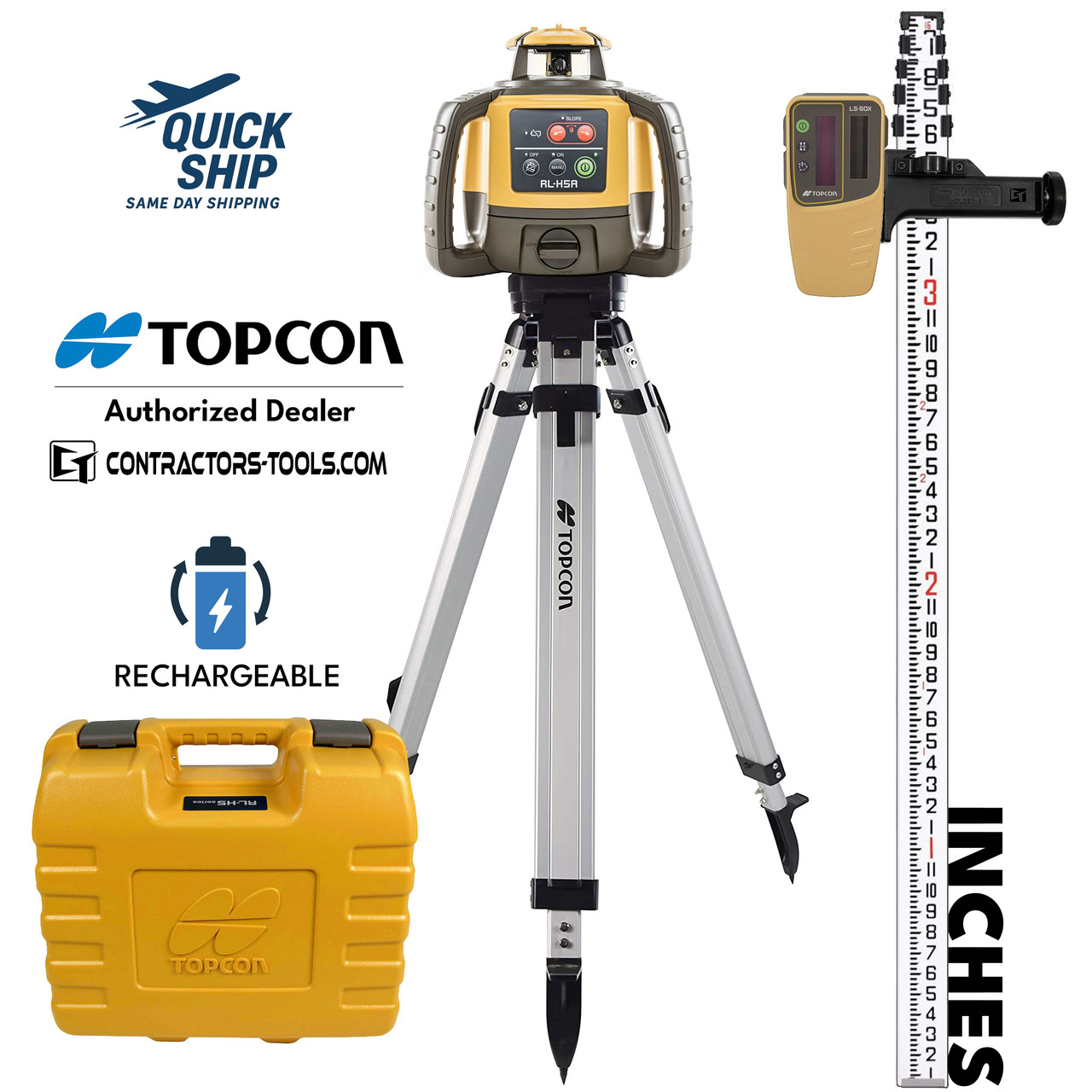

The Topcon RL-H5A (model 1021200-49-K2) is a construction-grade self-leveling rotary laser built for demanding jobsite conditions. Whether you're grading a foundation, establishing floor elevations, or setting drainage slopes, the RL-H5A delivers consistent, reliable horizontal reference planes across a full 360-degree radius. This complete kit includes the LS-80X digital grade rod receiver, an aluminum tripod, an inch-graduated measuring rod, and a rechargeable battery system — everything a professional crew needs to get to work out of the box.

Overview & Jobsite Applications

Designed specifically for general construction workflows, the RL-H5A combines Topcon's proven self-leveling pendulum system with a rugged IP66-rated housing that shrugs off dust, rain, and the daily abuse of busy job sites. It self-levels within ±5 degrees in seconds and locks the pendulum automatically when moved, protecting the internal mechanism during transport. Operating at up to 2,600 ft (800 m) in diameter with the included LS-80X receiver, this laser handles everything from residential grading to commercial slab work with ease.

Key Specifications

• Model: RL-H5A | SKU: 1021200-49-K2
• Working Range: Up to 2,600 ft (800 m) diameter with receiver
• Accuracy: ±1/16 in at 100 ft (±1.5 mm at 30 m)
• Self-Leveling Range: ±5 degrees
• Rotation Speed: 300, 600, or 1,200 RPM (selectable)
• IP Rating: IP66 — dust-tight and water jet resistant
• Battery Life: Up to 60 hours (rechargeable pack included)
• Laser Class: Class 3R, 635 nm visible red beam
• Weight: Approx. 4.6 lbs (2.1 kg) instrument only
• Operating Temperature: -4°F to +122°F (-20°C to +50°C)

What's in the Kit

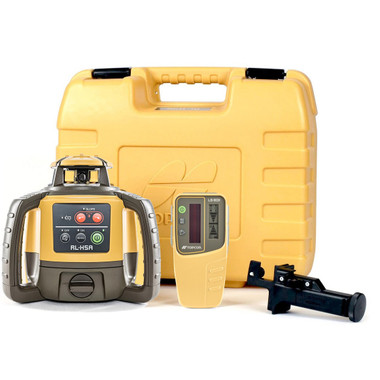

• Topcon RL-H5A self-leveling rotary laser instrument

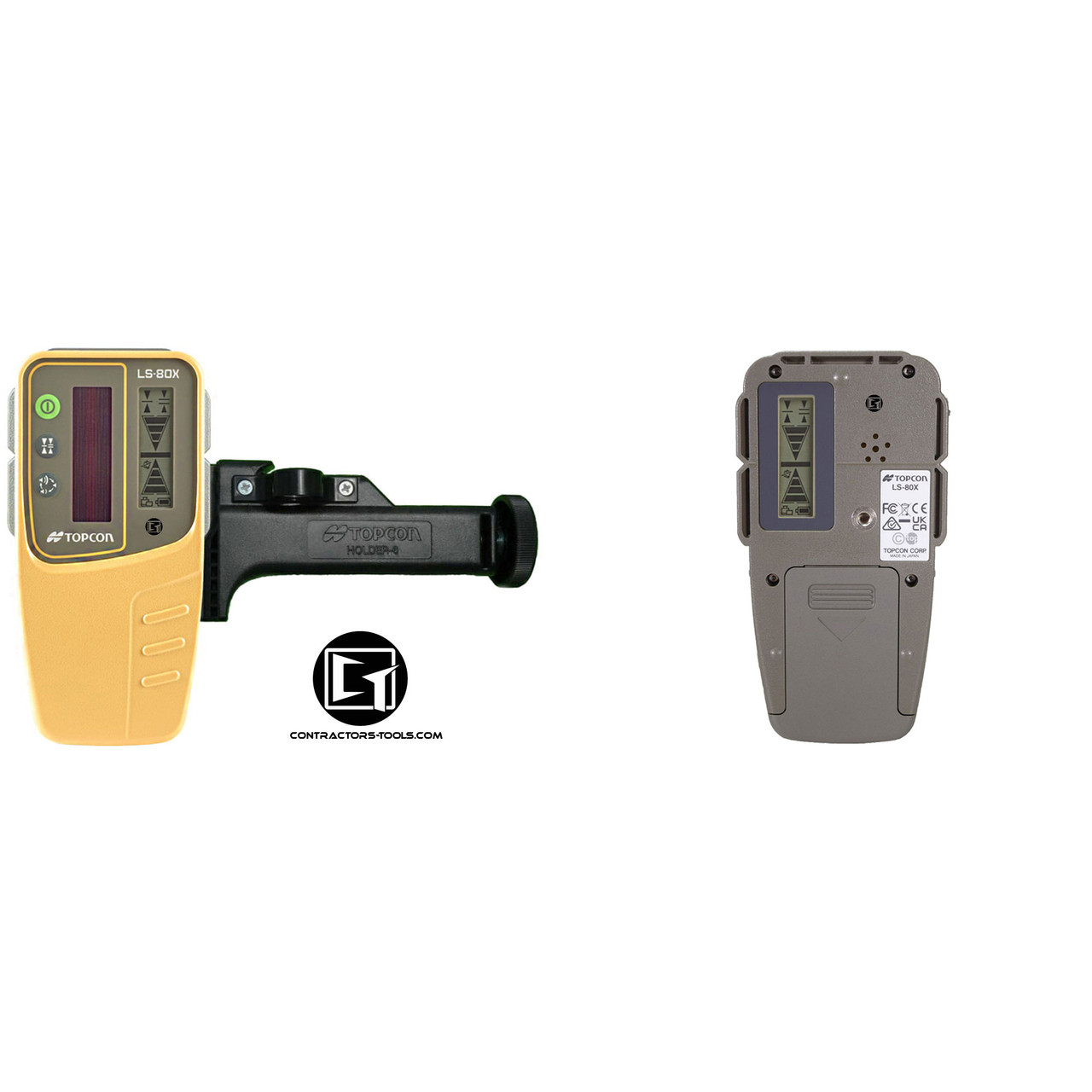

• LS-80X digital grade rod receiver with rod clamp
• Aluminum quick-release tripod

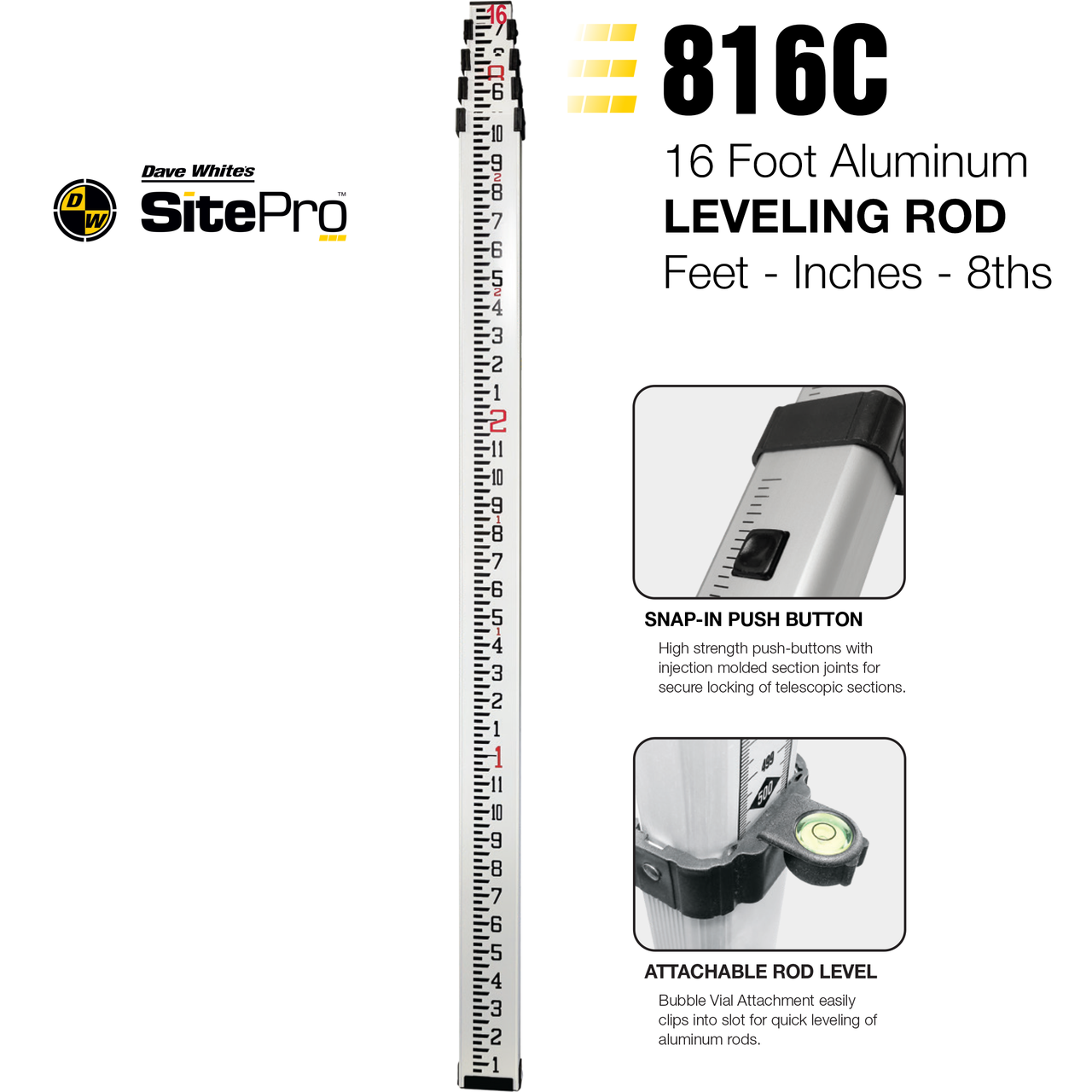

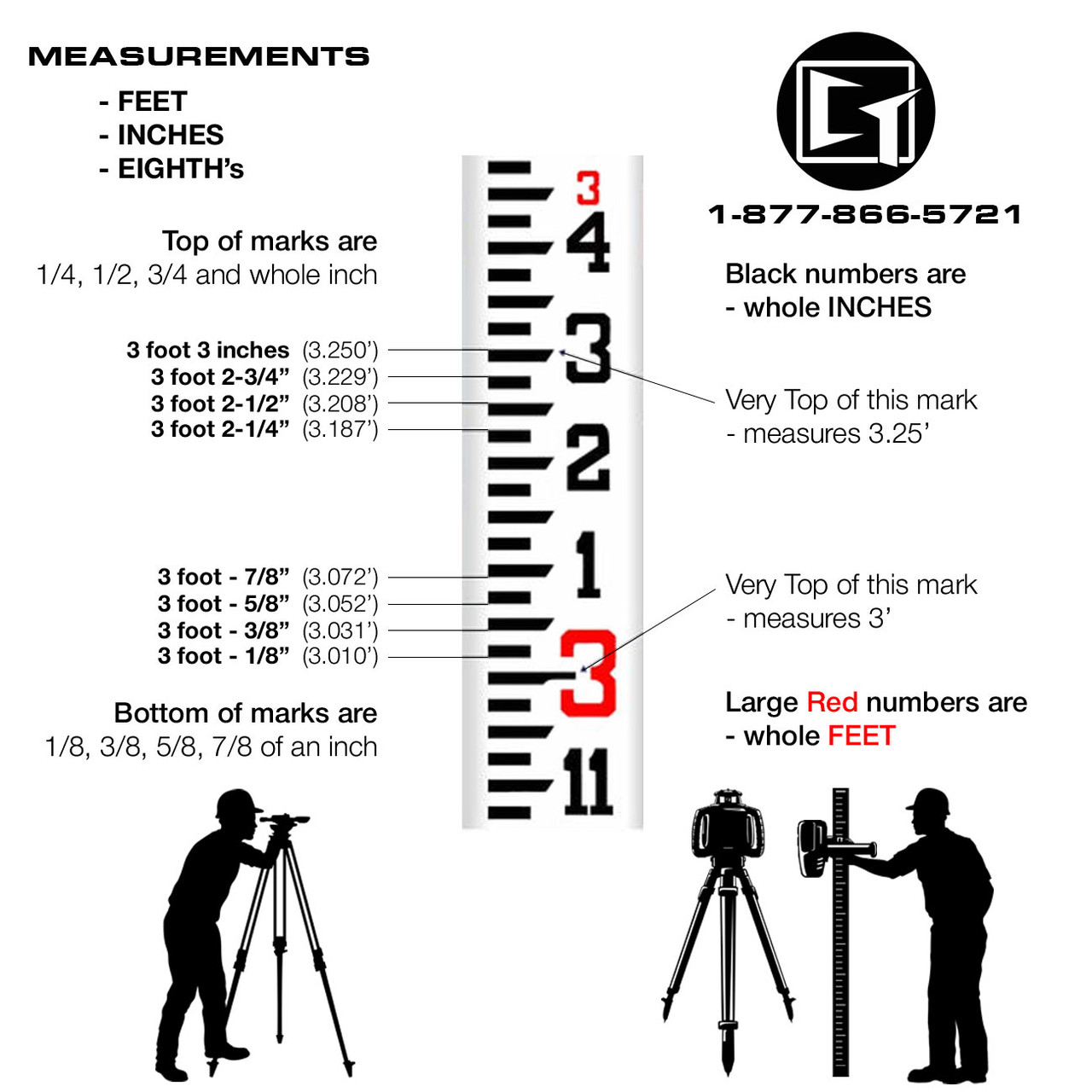

• Inch-graduated fiberglass measuring rod
• Rechargeable battery pack and AC charger
• Carrying case for instrument and accessories

Job Applications

Foundation & Slab Layout: Establish precise horizontal planes for concrete pours and footing elevations. The RL-H5A's ±1/16 in accuracy at 100 ft keeps your forms true from corner to corner.

Site Grading & Excavation: Use the high-visibility receiver and long working range to control cut-and-fill operations across large sites without repositioning the instrument.

Interior Finish Work: Drop ceiling grids, suspended mechanical systems, and partition walls all benefit from a consistent laser reference — the selectable slow rotation mode (300 RPM) gives receivers a stronger, more readable signal indoors.

Drainage & Utility Trenching: Confirm pipe fall and drainage grades quickly. The LS-80X receiver reads above-grade, saving time versus manual measurement at every stake.

Compatible Accessories

• Topcon LS-80X Replacement Receiver
• Topcon RC-40 Wireless Remote Control
• Heavy-Duty Aluminum Grade Rod (10 ft)
• Topcon Rechargeable Battery Pack (Spare)
• Universal Laser Detector Clamp

Related Guides

• How to Set Up a Rotary Laser for Foundation Layout
• Rotary Laser vs. Line Laser: Choosing the Right Tool for the Job
• Understanding Laser Receiver Sensitivity for Outdoor Use
• Topcon RL-H5A vs. RL-H4C: What Changed?

Frequently Asked Questions

Does the Topcon RL-H5A work outdoors in bright sunlight?

Yes. While the red laser beam itself is difficult to see with the naked eye outdoors, the included LS-80X receiver detects the beam up to 1,300 ft away in full sunlight, making the RL-H5A fully practical for exterior grading and site work.

Can the RL-H5A be used for slope or grade applications?

The RL-H5A is a horizontal-only self-leveling laser and does not have a manual slope mode. For grade matching or dual-axis slope applications, consider the Topcon RL-H5B or RL-200 series. The RL-H5A excels at establishing true horizontal planes.

How long does the rechargeable battery last on a single charge?

Topcon rates the RL-H5A at up to 60 hours of continuous operation on the included rechargeable battery pack under normal operating conditions. Cold temperatures may reduce runtime; the kit includes an AC charger and the instrument also accepts optional alkaline battery packs.

Is the RL-H5A compatible with Topcon machine control systems?

The RL-H5A is primarily a grade-and-layout instrument rather than a machine control laser. For dozer or motor grader control integration, Topcon's RL-200 or 3D-MC systems are the appropriate platforms. However, the RL-H5A pairs well with grade checkers and manual layout crews on mixed-equipment job sites.
