Topcon RL-H5A Self-Leveling Laser PS.RB Kit with LS-80L Receiver, Rechargeable Batteries, Measuring Rod INCHES and Tripod

Overview

The Topcon RL-H5A Self-Leveling Laser PS.RB Kit (1021200-06-K2) delivers horizontal and vertical leveling for general construction, concrete work, and interior finish applications. This complete package serves contractors running multi-day projects who need rechargeable power, inches-marked measurement capability, and detection range extending to 800 feet diameter. The kit pairs Topcon's reliable RL-H5A laser head with the LS-80L receiver, alkaline/rechargeable battery options, tripod, and inches-graduated measuring rod—eliminating conversion calculations and providing immediate operational readiness. Designed for concrete contractors, framing crews, and mechanical trades working from imperial-unit drawings, this configuration reduces battery procurement cycles while maintaining the accuracy and durability expected from Topcon's construction laser platform.

Key Specifications

• Self-Leveling Range: ±5 degrees
• Leveling Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Working Diameter: 800 feet (245m) with LS-80L receiver
• Rotation Speed: 600 RPM
• Environmental Rating: IP66 dust-tight and water-resistant
• Power Options: 4× D-cell alkaline or rechargeable NiMH batteries (DB-74 included)
• Battery Life: 100+ hours alkaline, 60+ hours rechargeable
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Laser Wavelength: 635nm visible red beam
• Weight: 6.2 lbs (2.8kg) laser head only

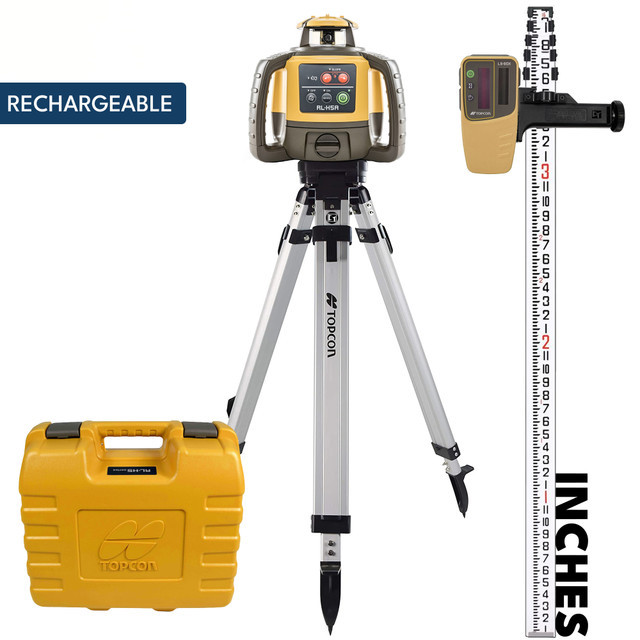

What's in the Kit

• RL-H5A Laser Level: Horizontal self-leveling rotary laser with manual vertical axis lock and slope mode
• LS-80L Laser Receiver: 2-sided clamp-mount detector with LCD display, audio alert, and front/back sensors
• DB-74 Rechargeable Battery Pack: NiMH rechargeable battery system with charger, eliminating disposable D-cell purchases
• Alkaline Battery Holder: 4× D-cell tray for backup power or initial operation before recharge
• Inches Measuring Rod: Telescoping grade rod with imperial unit graduations for direct measurement transfer from US construction documents
• Aluminum Tripod: Adjustable-height mounting platform with quick-clamp laser attachment
• Hard Carrying Case: Impact-resistant storage with custom foam interior protecting all components
• RC-60 Remote Control: Wireless laser operation from up to 150 feet for single-operator leveling tasks
• Instruction Manual: Setup, calibration, and troubleshooting documentation

Job Applications

• Concrete Slab Pours: Set formwork elevation and verify deck level across large areas without string lines, maintaining ±1/16-inch accuracy for specification compliance.
• Drop Ceiling Installation: Establish consistent grid height throughout commercial interiors using receiver-equipped grade rod, eliminating cumulative measurement error.
• Foundation Excavation: Check depth and base elevation at multiple points simultaneously with 800-foot detection range covering entire residential foundations.
• Deck and Patio Leveling: Set slope for drainage with manual grade adjustment, using receiver audio alerts to confirm elevation targets without constant visual checks.
• Metal Framing Layout: Mark track elevations for wall framing in commercial buildings, with inches-marked rod matching architect drawings directly.
• Utility Trenching: Monitor ditch grade and depth for plumbing and electrical conduit, with IP66 rating protecting against dust and spray exposure.

Compatible Accessories

Expand system capability with these Topcon-compatible accessories:

• Topcon LS-100D Receiver – Extended 1,600-foot range with digital LCD readout
• Topcon RC-200 Remote Control – Advanced wireless control with slope adjustment capability
• Additional DB-74 Battery Packs: Maintain continuous operation with backup rechargeable batteries during charging cycles
• Heavy-Duty Elevating Tripod – 360-degree leveling head and 5-to-8-foot height adjustment for uneven terrain
• Magnetic Laser Target Plates – Visual reference for alignment work where receiver mounting isn't practical

Related Guides

• How to Calibrate a Rotary Laser Level – Verify RL-H5A accuracy before critical layout work
• Topcon RL-H5A vs. Spectra LL300 Comparison – Side-by-side feature analysis for horizontal laser selection
• Laser Detector Positioning Techniques – Maximize LS-80L receiver performance in bright conditions
• Laser Level Won't Self-Level Troubleshooting – Diagnose and resolve pendulum lock or out-of-range issues

Frequently Asked Questions

Can the RL-H5A be used for single-axis slope work like drainage grading?

Yes. The RL-H5A features manual axis slope capability, allowing you to set grade using the fine-adjustment controls on the laser head. The receiver provides audio feedback as you move along the slope path. For dual-axis slope applications, consider upgrading to the RL-SV2S model with electronic slope control.

What's the detection range difference between sunny and overcast conditions?

With the LS-80L receiver, expect 800-foot diameter range in overcast or indoor conditions. Bright sunlight reduces effective range to approximately 400-500 feet diameter. Using laser-enhancing glasses or working during dawn/dusk hours extends outdoor performance. The receiver's sensitivity settings optimize detection based on ambient light conditions.

How does the rechargeable battery runtime compare to alkaline D-cells?

Alkaline D-cells provide 100+ hours of continuous operation, while the DB-74 rechargeable pack delivers 60+ hours per charge. The rechargeable option eliminates battery purchasing costs after 3-4 charge cycles. Many contractors keep both battery holders charged for uninterrupted multi-day projects, swapping packs during lunch breaks.

Is the included tripod height sufficient for excavation depth checking?

The kit tripod extends to approximately 5.5 feet, adequate for most residential foundation and flatwork applications. For deeper excavation monitoring or working over obstruction height, an elevating tripod extending to 8+ feet provides better line-of-sight. The laser's 5/8×11 mounting thread accepts all standard survey tripods.
