Topcon RL-H5A Self-Leveling Laser PS.RB Kit with LS-80X Receiver, Rechargeable Batteries, Measuring Rod INCHES and Tripod

The Topcon RL-H5A is a professional-grade self-leveling rotary laser engineered for contractors who demand reliable, high-visibility coverage across large jobsites. Whether you're grading a subdivision lot, setting drainage slopes, or establishing foundation benchmarks, the RL-H5A delivers a consistent 360-degree rotating red beam with automatic leveling that keeps your crew on-grade and on-schedule. This ready-to-work package (model 1035261-01) ships with the LS-80X laser receiver, an inches-calibrated measuring rod, a heavy-duty adjustable tripod, and a rechargeable battery system — everything your team needs for immediate field deployment.

Product Overview & Jobsite Applications

The RL-H5A is purpose-built for outdoor horizontal leveling tasks where a full rotating plane is more practical than a fixed point or line laser. Its high-output red beam and wide operating range make it equally effective on large earthwork projects and confined foundation pours. The LS-80X receiver extends the effective working radius well beyond naked-eye detection, enabling single-operator setups even on open sites. Automatic self-leveling within ±6° of plumb means fast instrument setup with no manual fine-tuning required.

Key Specifications

• Laser Class: Class IIIa (CDRH) / Class 3R (IEC)
• Self-Leveling Range: ±6°
• Leveling Accuracy: ±1.5mm at 30m (±3/32" per 100 ft)
• Beam Rotation Speed: 2, 5, or 10 RPM (selectable)
• Operating Range (with receiver): Up to 800m (2,600 ft) diameter
• Dust & Water Resistance: IP66-rated housing
• Power Source: Rechargeable Ni-MH battery pack; optional AA alkaline adapter
• Battery Life: Up to 100 hours on rechargeable pack
• Grade Capability: Manual grade mode ±10% single axis
• Receiver: Topcon LS-80X with 25mm reception zone and audible/visual grade indicators

What's in the Kit (Model 1035261-01)

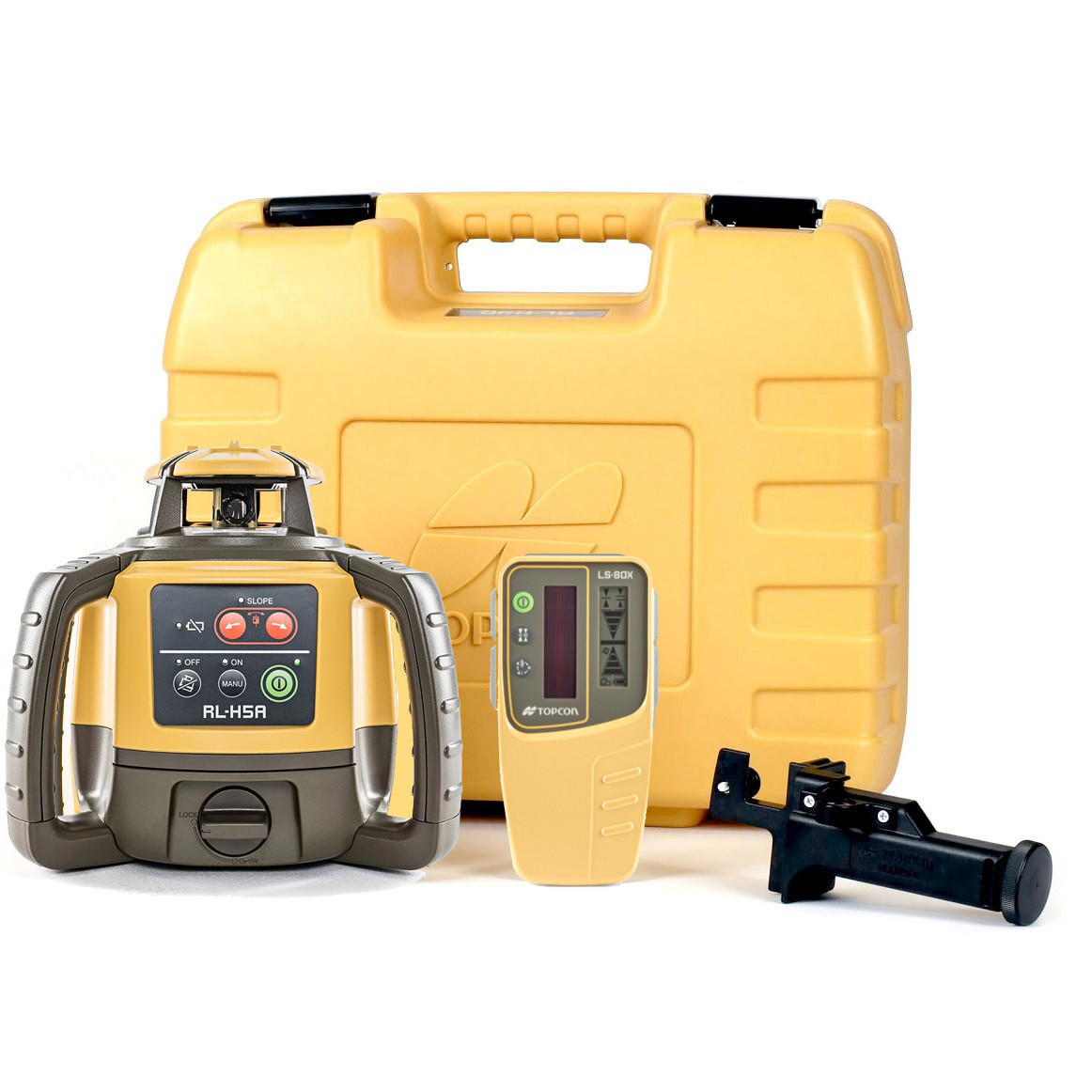

• Topcon RL-H5A self-leveling rotary laser instrument
• LS-80X laser receiver with mounting bracket and clamp
• Inches-calibrated grade rod (measuring rod)
• Heavy-duty adjustable tripod
• Rechargeable Ni-MH battery pack and AC charger
• Carrying case for instrument and accessories
• Operator's manual and calibration certificate

Job Applications

Site Grading & Earthwork: Set cut/fill stakes quickly across large open areas. The LS-80X receiver mounts to the grade rod for one-person operation, reducing the need for a rod person and keeping earthmoving equipment moving.

Drainage & Slope Layout: Use single-axis manual grade mode to establish consistent drainage slopes on parking lots, athletic fields, and agricultural drainage projects without recalculating between setups.

Foundation & Slab Leveling: Verify concrete form heights and slab elevations during pours. The RL-H5A's IP66-rated housing handles the dust and moisture inherent to concrete work without interrupting operations.

Utility & Pipeline Trenching: Maintain consistent invert elevations for sewer, storm drain, and water main installations. The selectable rotation speed allows beam detection even in bright daylight conditions at trench depth.

Compatible Accessories

• Topcon LS-80L Laser Receiver — Extended Range
• Topcon RC-400 Remote Control for RL-H5A
• Replacement Ni-MH Battery Pack for RL-H5A
• Aluminum Grade Rod — Metric Calibrated
• Universal Laser Detector Clamp & Bracket
• Topcon Instrument Carrying Case — Hard Shell

Related Guides

• How to Set Up a Rotary Laser for Site Grading
• Rotary Laser vs. Line Laser: Choosing the Right Tool for Your Project
• Understanding IP Ratings for Jobsite Laser Instruments
• How to Use a Laser Receiver for Single-Operator Layout

Frequently Asked Questions

Does the Topcon RL-H5A work in direct sunlight?

Yes. While the red beam may not be visible to the naked eye in bright sunlight, the included LS-80X receiver detects the beam at distances up to 800 meters in full daylight, making outdoor use fully practical without a laser enhancement goggle.

Can the RL-H5A be used for vertical applications or plumb transfer?

The RL-H5A is optimized for horizontal rotating plane applications. It does not natively support 360-degree vertical plane rotation. For vertical layout and plumb transfer, a dedicated pipe laser or dual-axis laser instrument would be more appropriate.

What is the difference between this RS kit and the standard RL-H5A?

The RS kit (model 1035261-01) is a bundled package that includes the LS-80X receiver, an inches-calibrated measuring rod, and a heavy-duty tripod — providing a complete turn-key system versus purchasing the instrument alone. This eliminates the need to source compatible accessories separately.

Is the RL-H5A compatible with machine control systems?

The RL-H5A can interface with basic laser-guided machine control systems that accept a standard rotating laser input via an external sensor. However, for full manufacturer-supported machine control integration, Topcon's dedicated machine control laser models are recommended. Contact Express Tools for guidance on your specific application.
