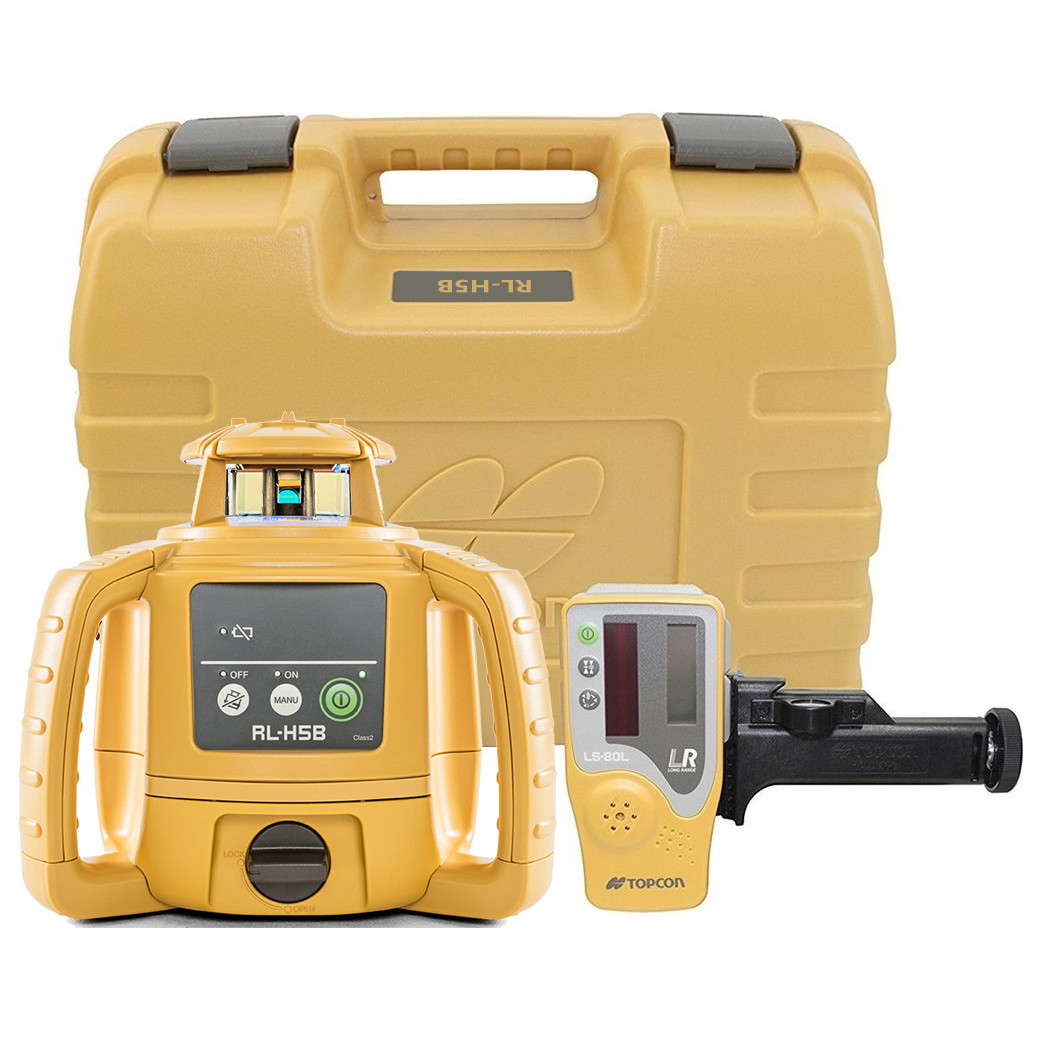

Topcon RL-H5B Self-Leveling Laser PS.DB Kit with LS-80L Receiver - 1021200-33 (uses Alkaline Batteries)

Topcon RL-H5B DB Rotary Laser Kit — Professional Grade, Alkaline Convenience

The Topcon RL-H5B DB (1021200-33) rotary laser kit delivers the trusted performance contractors count on for site grading, excavation, and general construction layout — without requiring a dedicated rechargeable battery system. Powered entirely by standard alkaline batteries, this kit is purpose-built for crews who need a reliable, self-leveling rotary laser they can deploy anywhere without hunting for charging infrastructure. It's an ideal solution for small-to-mid-size grading contractors, landscapers, concrete flatwork crews, and general contractors who need a dependable horizontal plane laser that's ready the moment it comes out of the case.

Product Overview

The RL-H5B is one of the most field-proven rotary lasers in Topcon's lineup. The DB (Dry Battery) variant removes the rechargeable battery dependency entirely, making it a smart choice for job sites where charging access is limited or for contractors who maintain multiple tools across multiple sites. The unit self-levels within a ±5° range, locks the compensator for transport, and produces a bright, highly visible laser plane detectable up to 800 meters in diameter with the included LS-80L receiver. Whether you're cutting a foundation pad, establishing drainage slope, or checking floor flatness on a slab pour, the RL-H5B gives you a consistent, accurate reference plane throughout the entire workday.

Key Specifications

• Model: Topcon RL-H5B (DB / Dry Battery)
• SKU / Part Number: 1021200-33
• Laser Class: Class II (635nm visible red beam)
• Self-Leveling Range: ±5°
• Leveling Accuracy: ±10 arcseconds (±1mm at 10m)
• Working Diameter: Up to 800m (with LS-80L receiver)
• Rotation Speed: 300 / 600 / 1200 RPM (selectable)
• Battery Type: Alkaline AA batteries (6 x AA)
• Battery Life: Approximately 90–100 hours (at 600 RPM)
• IP Rating: IP66 — dust-tight and water-resistant
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)
• Weight: Approximately 2.2 kg (4.9 lbs) with batteries

What's Included in the Kit

• Topcon RL-H5B Rotary Laser Transmitter — self-leveling, IP66 rated
• LS-80L Laser Receiver — detects the laser plane in bright ambient conditions, with audible and LED grade indicators
• Grade Rod Clamp — mounts the LS-80L securely to standard grade rods
• Alkaline AA Batteries — pre-packaged, ready to use out of the box
• Carrying Case — rugged protective case for transport and storage
• Operator's Manual

Job Applications

Site Grading and Earthwork

Set the RL-H5B on a tripod at the center of the work zone and let it broadcast a perfectly level reference plane across the entire site. Machine operators and grade checkers can use the LS-80L receiver on a grade rod to verify cut-and-fill elevations in real time, reducing the need for a surveyor to re-establish grade throughout the day.

Concrete Flatwork and Slab Pours

Concrete crews use the RL-H5B to set screed rail heights before the pour, ensuring consistent slab thickness and meeting flatness tolerances. The 1200 RPM rotation speed provides a rapid enough plane update rate for screeding operations without flicker interference.

Drainage and Landscape Grading

Landscaping contractors establishing positive drainage around structures, parking lots, or athletic fields can set a reference elevation and use the LS-80L receiver to maintain consistent slope across wide areas without constant re-checking with a hand level or string line.

Foundation Layout and Excavation

Excavation contractors setting footing depths and foundation pad elevations rely on the RL-H5B's ±10 arcsecond accuracy to hold tight tolerances across the dig. The IP66 housing handles the dusty, wet, and vibration-heavy conditions typical of active excavation sites.

Compatible Accessories

• Topcon LS-80L Laser Receiver (Replacement)
• Topcon Laser Tripods
• Fiberglass Grade Rods
• Topcon RL-H5B Rechargeable Battery Kit
• Laser Detector Rod Clamps

Related Guides

• How to Set Up a Rotary Laser on a Job Site
• Rotary Laser vs. Pipe Laser: Which Do You Need?
• Topcon RL-H5B Field Review
• Alkaline vs. Rechargeable Batteries for Rotary Lasers

Frequently Asked Questions

What is the difference between the Topcon RL-H5B DB and the standard RL-H5B kit?

The DB designation stands for Dry Battery, meaning this version of the RL-H5B is configured to run exclusively on standard alkaline AA batteries rather than Topcon's rechargeable battery pack system. The laser transmitter itself is identical in performance — same accuracy, same range, same IP66 housing — but the DB variant is preferred by contractors who need operational flexibility on sites without reliable power access for charging.

How long will alkaline batteries last in the RL-H5B?

With a fresh set of six AA alkaline batteries and the unit running at 600 RPM, you can expect approximately 90 to 100 hours of continuous operation. Battery life will vary slightly based on rotation speed and ambient temperature. Cold weather conditions can reduce battery output, so it's good practice to carry a spare set when working in winter conditions.

What is the maximum working range of the RL-H5B with the LS-80L receiver?

With the included LS-80L laser receiver, the system has a working diameter of up to 800 meters (approximately 2,600 feet). Without a receiver — relying solely on direct visual detection of the laser dot — the effective range drops significantly and is not recommended for precision work. For all professional grading and layout tasks, always use the receiver.

Is the Topcon RL-H5B suitable for indoor use such as suspended ceilings or partition layout?

While the RL-H5B is primarily engineered for outdoor horizontal grading work, it can be used indoors for elevation transfer and reference plane tasks. However, it does not offer a vertical or plumb beam mode, and it does not have a manual grade or dual-grade function. For ceiling grid layout, suspended ceiling installation, or interior partition work requiring a vertical plane, a multi-line laser or a rotary laser with grade functionality would be more appropriate.
