Leica Rugby 610 Red Beam Rotary Laser Package (6011149) with Rod Eye 120 Receiver - Rechargeable

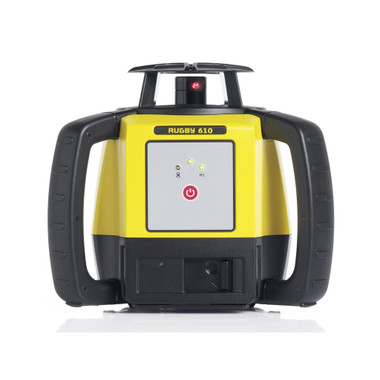

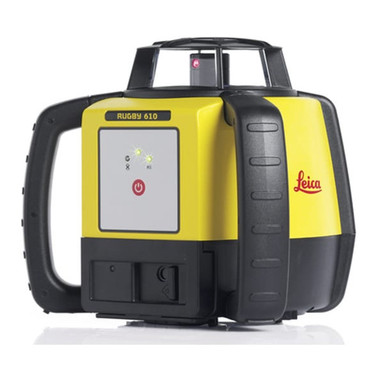

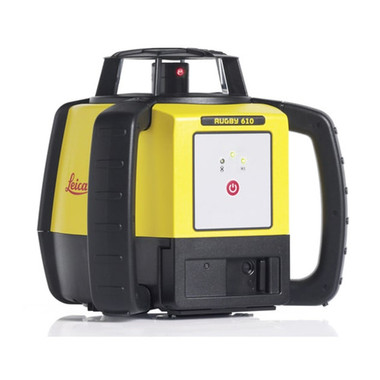

The Leica Rugby 610 (6011149) is Leica Geosystems' streamlined entry-level rotary laser built specifically for concrete and framing contractors who need accurate, repeatable horizontal level without fuss. Strip away every unnecessary feature, keep one-button operation and automatic self-leveling, pair it with Leica's legendary Swiss engineering, and you have a tool that out-performs many mid-range competitors straight out of the box. Whether you're pouring slabs, setting forms, or laying out floor plates, the Rugby 610 delivers the reliability you need to stay on schedule and on grade.

Overview & Jobsite Applications

The Rugby 610 is engineered for single-axis horizontal work on demanding jobsites. Its compact, rugged housing meets IP67 dustproof and waterproof standards, so it handles concrete dust, rain, and accidental submersion without skipping a beat. The included Rod Eye 120 receiver extends working range up to 500 m (diameter) in bright outdoor conditions, while the integrated rechargeable lithium-ion battery powers up to 45 hours of continuous rotation on a single charge — dramatically reducing downtime compared to disposable-battery competitors.

Key Specifications

• Model Number: 6011149
• Beam Color: Red (635 nm visible diode)
• Self-Leveling Range: ±5°
• Leveling Accuracy: ±1 mm @ 10 m (±1/10" @ 30 ft)
• Working Range (with receiver): Up to 500 m diameter
• Rotation Speed: 600 RPM (fixed)
• IP Rating: IP67 — fully dustproof, waterproof to 1 m submersion
• Battery: Integrated lithium-ion rechargeable
• Battery Life: Up to 45 hours continuous use
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Weight: Approx. 1.9 kg (4.2 lbs) with battery

Key Features & What's in the Kit

• One-Button Operation: Power on, auto-level completes in seconds — no menus, no modes to navigate
• Automatic Self-Leveling: Compensator corrects automatically within ±5° of plumb
• Out-of-Level Warning: Audible and visual alert if instrument is tilted beyond leveling range

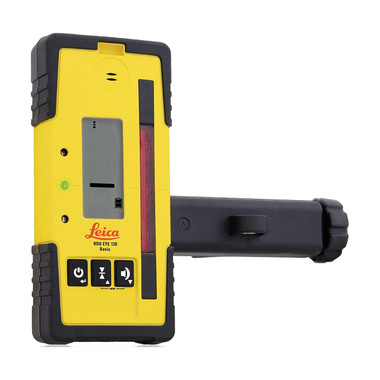

• Rod Eye 120 Receiver Included: Digital and analog detection modes, audible grade indication
• Rechargeable Li-ion Battery: No AA or D-cell battery costs; USB-compatible charger included
• IP67 Protection: Sealed against dust ingress and water immersion to 1 m for 30 minutes
• Leica Service Network: Factory-authorized repair and calibration centers across North America

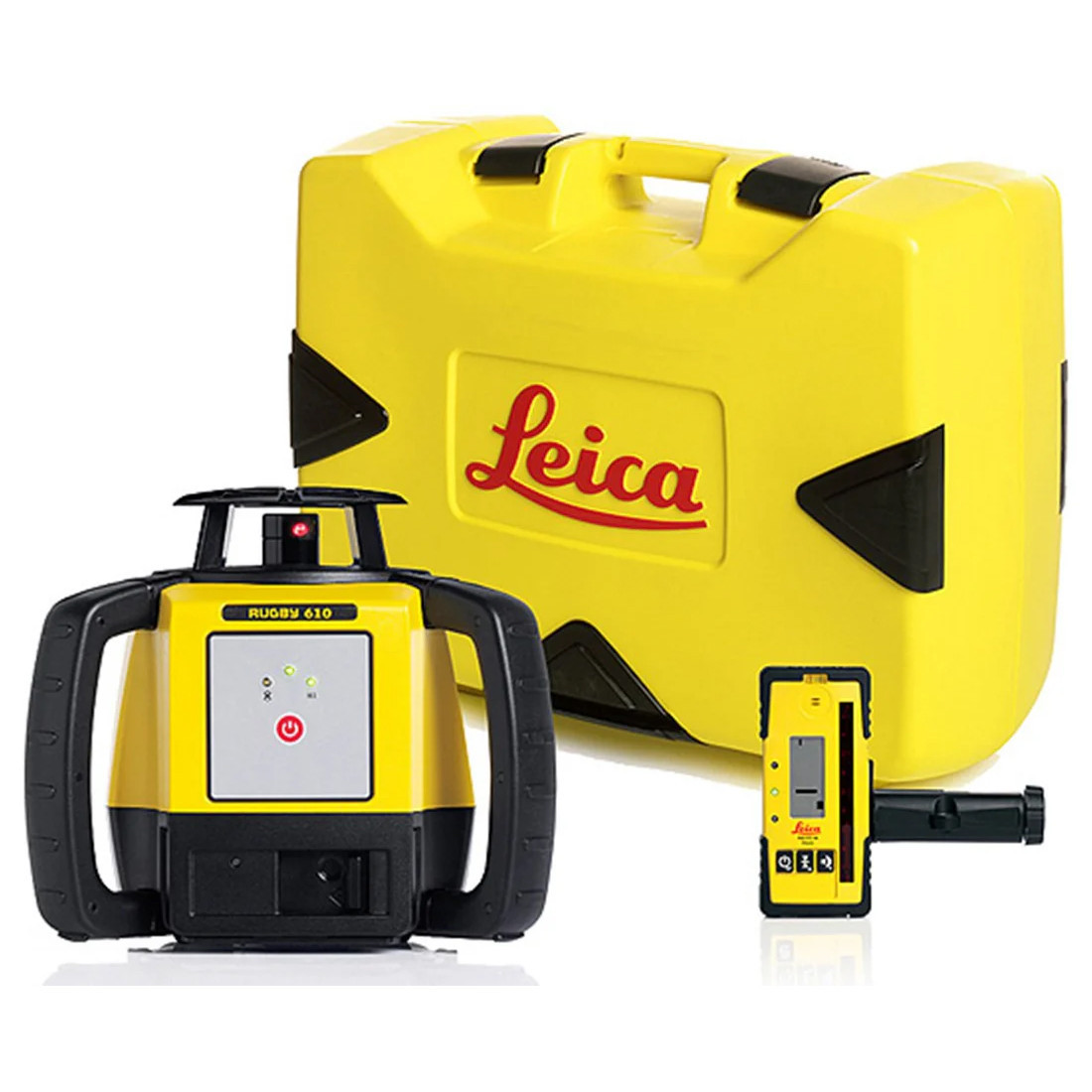

• Kit Includes: Rugby 610 laser unit, Rod Eye 120 receiver, Li-ion battery pack, charger, carrying case, target card, and documentation

Job Applications

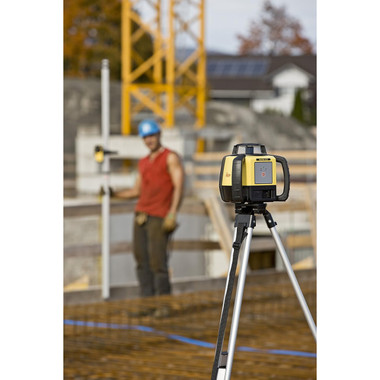

Concrete Slab & Foundation Work: Set the Rugby 610 on a tripod at slab center, let it self-level, and use the Rod Eye 120 clipped to a grade rod to check elevations at every pour point — no second person required at the instrument.

Structural Framing & Floor Plates: Establish a consistent horizontal plane across an entire floor deck to transfer layout heights for walls, door openings, and beam pockets with repeatable ±1 mm accuracy.

Site Grading & Drainage Layout: At 500 m working diameter, the Rugby 610 covers even large commercial pads. Use the receiver's audible feedback to grade subbase material without constant visual checks.

Interior Finish & Drop Ceilings: The compact footprint fits on standard tripods or interior laser brackets, making it equally at home shooting ceiling grid elevations or leveling cabinet runs across large open floor plans.

Compatible Accessories

• Rod Eye 120 Receiver (replacement/spare)
• Leica Rugby Rechargeable Battery Pack
• Leica Aluminum Elevator Tripod
• Leica Flat-Head Grade Rod (5 m)
• Leica Rugby Remote Control (GEV710)
• Leica Laser Target Plates

Related Guides

• How to Set Up a Rotary Laser for Concrete Forming
• Rugby 610 vs. Rugby 620: Which Leica Laser Is Right for Your Crew?
• Using the Rod Eye 120 Receiver: Tips for Grade Work
• Rotary Laser Maintenance: Keeping Your Instrument Calibrated

Frequently Asked Questions

Does the Leica Rugby 610 work outdoors in daylight?

Yes — when paired with the included Rod Eye 120 receiver the Rugby 610 achieves a working diameter up to 500 m even in bright sunlight. The red beam is not visible to the naked eye at that range, so the receiver is required for outdoor use beyond approximately 30–50 m.

Can the Rugby 610 shoot vertical or grade planes?

No. The Rugby 610 is a single-axis horizontal-only laser. It cannot be tilted to project a grade or vertical plane. If you need grade or vertical capability, consider the Leica Rugby 620 or 640 models, which support manual slope and dual-axis leveling.

How long does the battery last and can I replace it in the field?

The integrated lithium-ion battery delivers up to 45 hours of continuous rotation. It is recharged via the included charger and is not a field-swappable disposable cell. Leica sells a spare battery pack so crews can keep a charged spare on hand for extended shifts.

Is the Rugby 610 covered by a Leica warranty?

Leica Geosystems backs the Rugby 610 with a manufacturer's warranty (terms vary by region — confirm current coverage at time of purchase). As an authorized Leica dealer, Express Tools ensures every unit is sold new in factory packaging, preserving full warranty eligibility and access to Leica's North American service network.
