Leica Rugby 640 Red Beam Rotary Laser Package (6005987) with Deluxe RE140 Receiver - Alkaline

Universal Laser Performance for Advanced Construction Applications

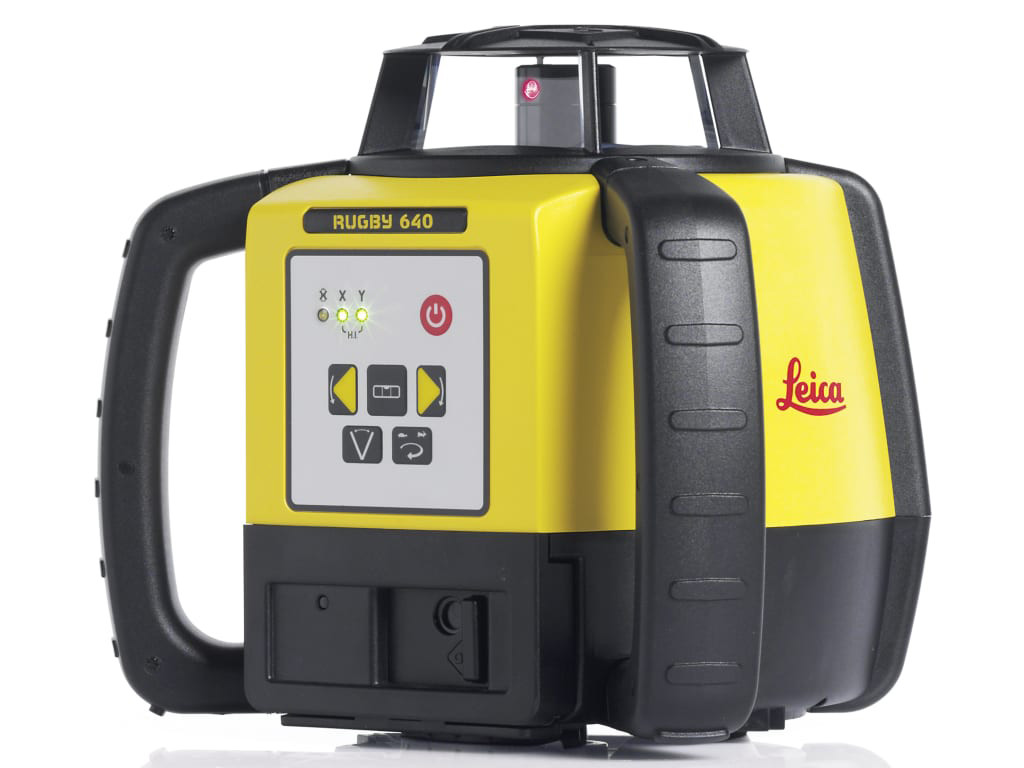

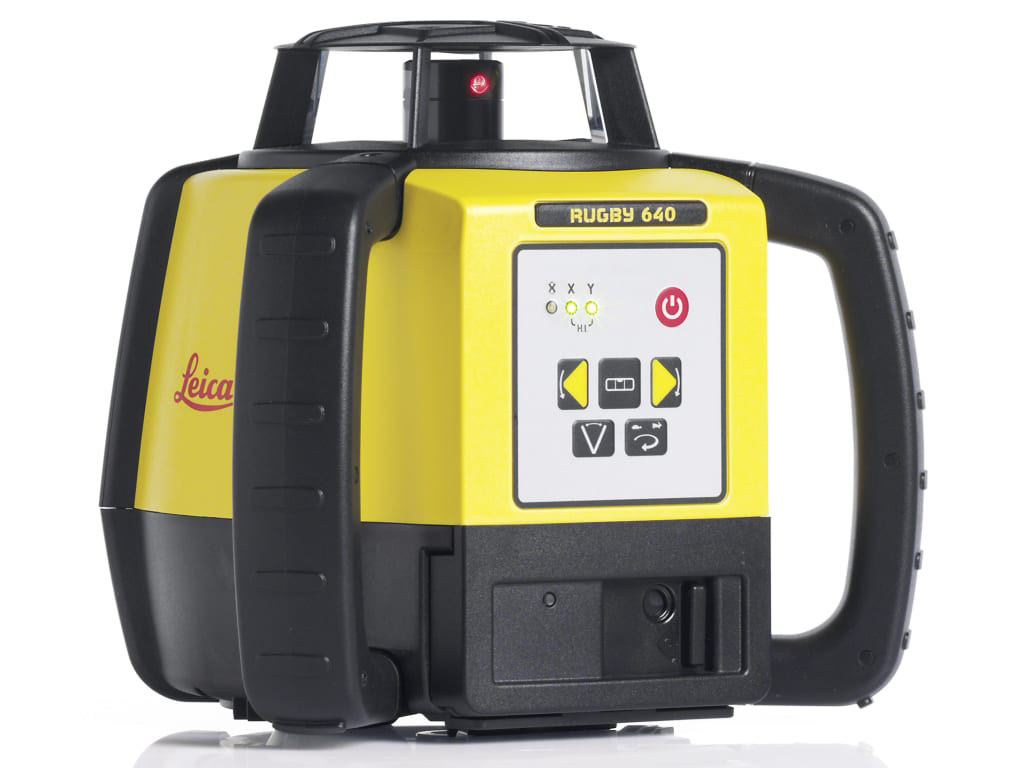

The Leica Rugby 640 (model 6005987) is the step-up rotary laser for contractors who demand genuine three-axis capability from a single instrument. Whether you're establishing a level plane across a large pour, shooting a plumb reference for wall framing, or dialing in a precise drainage slope across four independent quadrants, the Rugby 640 handles it without swapping equipment or compromising accuracy. Backed by Leica's reputation for Swiss-engineered precision and included with the Rod Eye 140 digital receiver, this kit is built for professionals who can't afford rework.

Product Overview & Jobsite Applications

The Rugby 640 delivers a self-leveling horizontal plane, vertical alignment, and fully user-defined slope in all four quadrants—making it one of the most versatile single-axis rotary lasers in Leica's lineup. Its IP67 rating means it survives dust immersion and temporary submersion, not just a light rain shower. The red beam pairs with the included Rod Eye 140 receiver for outdoor use at distances up to 800 meters in diameter, and the digital readout on the receiver eliminates guesswork when grade-setting on long runs. Powered by standard alkaline batteries, the unit runs up to 40 hours so you won't be hunting for a charge mid-pour.

Key Specifications

• Working range: up to 800 m diameter (with receiver)
• Self-leveling range: ±5°
• Accuracy: ±1 mm at 10 m
• Rotation speed: 300 / 600 / 1200 RPM
• Slope range: ±10% in X and Y axes (4-quadrant slope)
• IP rating: IP67 — dust-tight and waterproof to 1 m
• Battery life: up to 40 hours (alkaline AA)
• Operating temperature: -20°C to +50°C
• Laser class: Class 2 (red beam)
• Weight (instrument only): approx. 2.4 kg

What's in the Kit

• Leica Rugby 640 rotary laser instrument

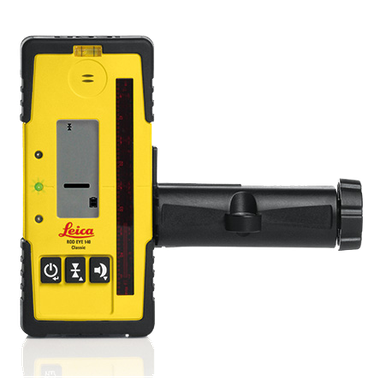

• Rod Eye 140 digital receiver with LCD grade readout
• Receiver rod clamp / bracket
• Alkaline AA batteries
• Hard carrying case
• Quick-start guide and documentation

Job Applications

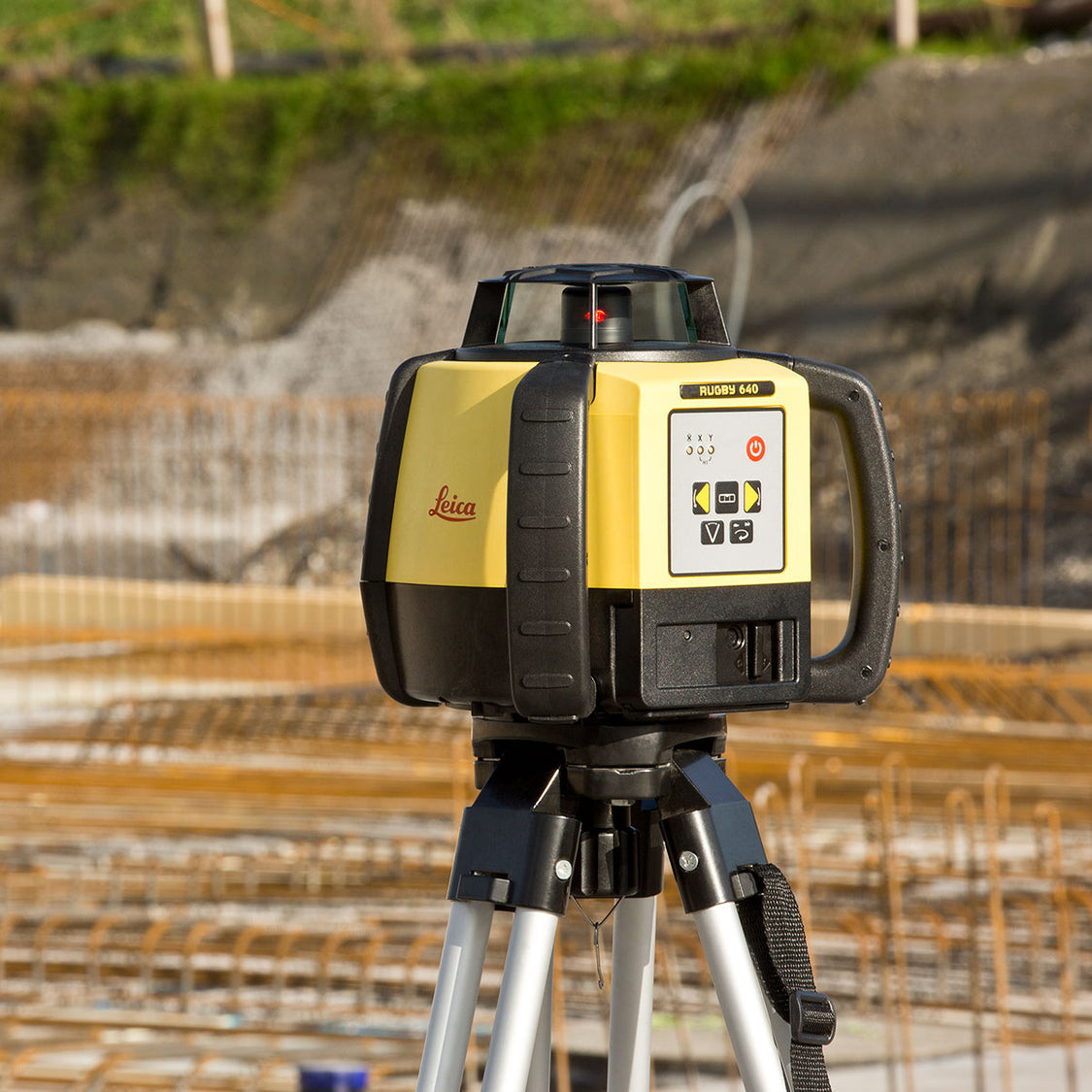

Concrete Flatwork & Floor Leveling: Lock in a precise horizontal reference plane and use the Rod Eye 140 at distance to maintain consistent slab thickness across large commercial pours or residential foundations.

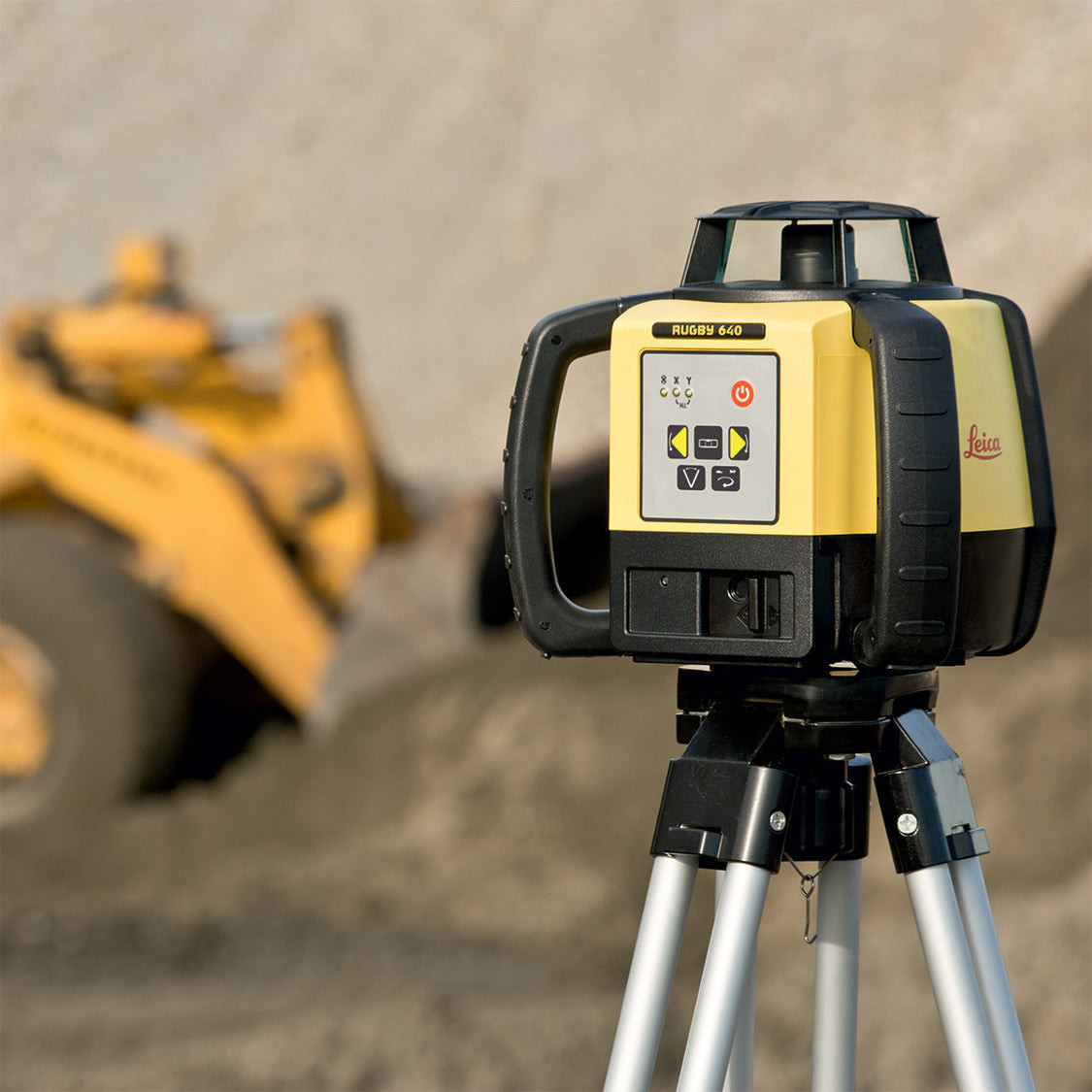

Site Grading & Drainage Slopes: The 4-quadrant slope mode lets you set independent X and Y slopes simultaneously—ideal for parking lot drainage, landscape grading, and agricultural field leveling without repositioning the instrument.

Structural Plumb & Vertical Layout: Switch to vertical mode for column plumb checks, curtain wall alignment, and multi-story wall layout where a consistent vertical reference is critical at every floor level.

Interior Fit-Out & Dropped Ceilings: Run the laser at reduced rotation speed or in point mode for suspended ceiling grids, partition walls, and MEP rough-in work where a stable, visible reference line speeds up layout.

Compatible Accessories

• Rod Eye 160 Digital Receiver — extended range receiver with remote display
• Leica Rugby Remote Control — wireless instrument control from the rod
• Leica Laser Tripod TRI 70 — heavy-duty aluminum tripod for Rugby series lasers
• Leica Grade Rod GR 122 — metric/imperial grade rod compatible with Rod Eye 140
• Leica Rugby Laser Detector Clamp — universal rod mount for receiver

Related Guides

• How to Set a 4-Quadrant Slope with the Rugby 640
• Red Beam vs. Green Beam Rotary Lasers: Which Do You Need?
• Using a Rotary Laser for Concrete Flatwork: Best Practices
• Leica Rugby Series Comparison: 610 vs. 640 vs. 680

Frequently Asked Questions

Can the Rugby 640 set slope in both X and Y axes at the same time?

Yes. The Rugby 640 supports full 4-quadrant slope mode, meaning you can simultaneously define grade in the X axis and the Y axis. This is essential for applications like parking lot drainage or sports field grading where a single-direction slope isn't sufficient.

Does the Rugby 640 work outdoors in bright sunlight?

The Rugby 640 uses a red beam, which becomes difficult to see with the naked eye in bright outdoor conditions. For outdoor work, the included Rod Eye 140 receiver detects the beam at distances up to 800 m diameter regardless of ambient light, making it fully functional on open jobsites during daylight.

What is the self-leveling range of the Rugby 640?

The instrument self-levels within a ±5° compensator range. If the laser is set up on a surface that exceeds this tilt, it will alert the operator rather than produce an inaccurate level plane. Always set up on a reasonably stable, near-level surface or use a leveling base to stay within range.

Is the Leica Rugby 640 covered by a warranty through Express Tools?

Yes. The Rugby 640 is covered by Leica's standard manufacturer warranty. As an authorized Leica dealer, Express Tools ensures your instrument is sourced through official channels, which is required for warranty service. Contact our team for warranty registration assistance or service inquiries.
