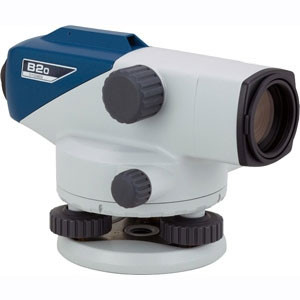

Sokkia B20-25 32X Power Automatic Level 2110120B0

The Sokkia B20-25 Automatic Level (model 2110120B0) is engineered for professional contractors who demand repeatable, high-accuracy elevation readings across demanding jobsite conditions. Featuring a 32X magnification optical system with an automatic compensator, this instrument eliminates the need for manual releveling during operation, saving time on large-scale grading, concrete flatwork, and civil construction projects.

Instrument Overview & Jobsite Applications

The B20-25 is built for contractors and survey crews who need a reliable, no-fuss automatic level that performs from the first setup to the last shot of the day. The sealed optical tube resists dust and moisture ingress, while the compensator mechanism self-levels within a wide range, keeping you productive even on uneven terrain or when the tripod shifts slightly between readings. Whether you are establishing finished floor elevations, checking pile cap heights, or running a long differential leveling loop across a civil site, the B20-25 delivers the accuracy and optical clarity needed to get the job done right the first time.

Key Specifications

• Magnification: 32X
• Objective Aperture: 36 mm
• Minimum Focus Distance: Approximately 0.5 m (1.6 ft)
• Compensator Type: Magnetic damping automatic compensator
• Compensator Range: ±15 arcminutes
• Accuracy (Standard Deviation per km double-run): ±2.0 mm
• Field of View at 100 m: Approximately 1.5 m
• Horizontal Circle: 360° graduated circle
• Weight: Approximately 1.8 kg (3.97 lbs)
• Model / SKU: 2110120B0

Key Features

• 32X High-Magnification Optics: Extends effective sighting range and produces crisp, high-contrast staff readings at distance, reducing the number of instrument setups on long runs
• Magnetic Damping Automatic Compensator: Self-levels quickly and holds a stable horizontal plane without manual input, eliminating operator error from bubble drift
• Wide Compensator Working Range (±15'): Accommodates minor tripod settling and uneven ground without triggering out-of-level errors
• Horizontal Circle: Full 360° graduated circle allows rough azimuth reference and alignment checks without a separate instrument
• Rugged Optical Housing: Durable construction designed to withstand the daily handling, vibration, and temperature swings common on active construction sites
• Compact and Lightweight Design: Easy to transport between setups; fits standard optical level cases and tripods
• Short Minimum Focus (0.5 m): Allows readings at very close range for utility, interior, and confined-space elevation work

Job Applications

Concrete Flatwork & Floor Elevation: Shoot grade stakes and screed rails quickly and accurately for slabs-on-grade, elevated decks, and tilt-up panels. The 32X optic gives a clean staff reading even across a large pour area.

Site Grading & Earthwork: Run differential leveling loops to establish bench marks, check subgrade elevation, and verify cut/fill operations against design grade — all with ±2.0 mm/km accuracy.

Foundation & Structural Layout: Confirm pile cap, footing, and column base elevations before forming, ensuring structural members are set at correct finished elevations from the start.

Utility & Pipeline Grade Control: Establish and verify pipe invert elevations, manhole rim grades, and storm drain fall — applications where consistent, precise differential leveling is critical to proper flow and code compliance.

Compatible Accessories

• Sokkia Fiberglass Grade Rod
• Heavy-Duty Aluminum Tripod for Optical Levels
• Sokkia Carrying Case for B-Series Levels
• Plumb Bob & String Line Kit
• Optical Level Sunshade / Lens Hood

Related Guides

• How to Set Up and Use an Automatic Level on a Construction Site
• Differential Leveling Techniques for Concrete Contractors
• Choosing the Right Optical Level: Automatic vs. Builder's Level
• Sokkia B-Series Level Maintenance and Calibration Guide

Frequently Asked Questions

What is the accuracy rating of the Sokkia B20-25?

The B20-25 achieves a standard deviation of ±2.0 mm per kilometer of double-run leveling, making it well-suited for construction layout, grading, and foundation work where precise elevation control is required.

Does the B20-25 require manual releveling during use?

No. The magnetic damping automatic compensator maintains the instrument's level plane automatically once the circular bubble is centered. As long as the instrument remains within the ±15-arcminute compensator range, it self-corrects for minor disturbances without operator input.

What tripod does the Sokkia B20-25 use?

The B20-25 accepts a standard 5/8" x 11 tribrach thread, compatible with most professional contractor-grade aluminum and fiberglass tripods. Express Tools carries a range of compatible tripods — see the accessories section above or contact our team for a recommendation.

Can the B20-25 be used for long-range sighting on large civil projects?

Yes. The 32X magnification and 36 mm objective aperture deliver sharp, high-contrast imagery at extended distances, reducing the number of instrument setups needed on long leveling runs. This makes it a practical choice for earthwork, road grading, and pipeline grade control across large site footprints.
