Sokkia 1030678-01 DE Rod Bracket for LS-80L and LS-80X Topcon Receiver B1-LS70-80

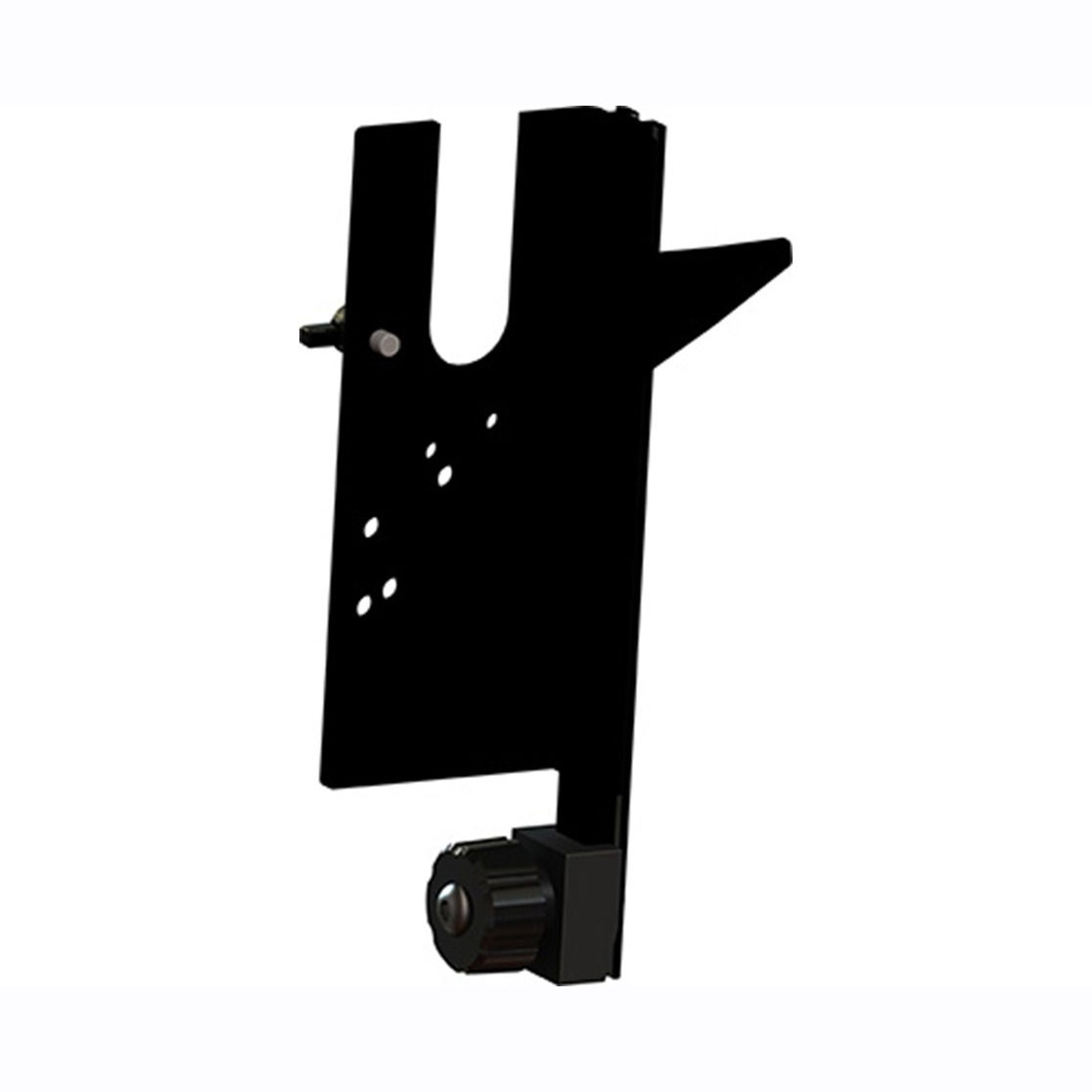

Sokkia B1-LS70-80 Rod Mounting Bracket

The Sokkia B1-LS70-80 (part number 1030678-01) is the purpose-built rod mounting bracket designed to secure Sokkia and Topcon LS-80L and LS-80X laser receivers to direct-reading grade rods. Engineered for contractors who rely on precise, repeatable grade checks throughout the workday, this bracket eliminates the frustration of constant re-clamping by providing a smooth-sliding rail interface that lets your detector glide freely along compatible LaserLine and Sokkia grade rods. Whether you are setting final grade on a site pad, pulling pipe to grade, or checking subbase depth across a large pour, the B1-LS70-80 keeps your receiver locked on target and your crew moving efficiently.

Overview & Jobsite Applications

Grading operations demand quick height adjustments without stopping to wrestle with hardware. The B1-LS70-80 bracket is machined from lightweight, corrosion-resistant aluminum and features a dedicated rail channel that matches the rod profile on Sokkia and compatible LaserLine grade rods. The result is a single-handed slide-and-lock workflow that saves time on every rod setup. Designed to maintain a rigid, vibration-free connection between the receiver and the rod, this bracket keeps the LS-80L or LS-80X detector perfectly plumb so elevation readings stay accurate from the first stake to the last.

Key Specifications

• Part Number: 1030678-01
• Model: B1-LS70-80
• Compatible Receivers: Sokkia / Topcon LS-80L, LS-80X
• Compatible Rods: LaserLine and Sokkia direct-reading grade rods with matching rail profile
• Material: Lightweight aluminum construction
• Mounting Style: Rail-slide with clamp lock
• Manufacturer: Sokkia
• Condition: New OEM accessory

Key Features

• LS-80L & LS-80X Compatibility: Precision-matched geometry ensures a secure, rattle-free fit with both receiver models without adapters or modification
• Smooth Rail-Slide Action: Detector glides along the rod rail for one-handed height adjustments, reducing downtime during extended grading runs
• Aluminum Construction: Lightweight yet durable material resists corrosion on wet and muddy jobsites while keeping total rod weight manageable
• Rigid Lock-Down: Positive clamping mechanism holds the receiver firmly at the chosen elevation, preventing drift or slip during grade checks
• OEM Fitment: Genuine Sokkia part ensures full compatibility and maintains manufacturer warranty on supported receiver models
• Compact Profile: Low-profile bracket design does not obstruct the receiver display or audio indicators during operation

Job Applications

Site Grading & Earthwork: Mount your LS-80L or LS-80X to a grade rod and walk the site quickly, sliding the receiver to the target elevation and checking cut/fill without stopping to re-clamp each time you move.

Pipe & Drainage Installation: Set the bracket to invert elevation on the grade rod and maintain consistent slope checks as you lay pipe in the trench, keeping the detector at a stable reference height throughout the run.

Concrete Flatwork & Subbase Prep: Use the bracket to verify subbase depth and finish grade elevation at multiple points across a slab area, relying on the rigid clamp to hold the receiver level on uneven terrain.

General Construction Layout: Pair the bracketed receiver with any rotating laser level to establish benchmark elevations for footings, forms, or structural fill, taking advantage of the smooth slide to reposition quickly between shots.

Compatible Accessories

• Sokkia LS-80L Laser Receiver
• Sokkia LS-80X Laser Receiver
• LaserLine Direct-Reading Grade Rod
• Sokkia Rotating Laser Levels
• Sokkia Carrying Cases & Accessories

Related Guides

• How to Mount a Laser Receiver to a Grade Rod
• Choosing the Right Laser Receiver for Grading Work
• Sokkia LS-80 Series Receiver Overview
• Laser Level Accessories Buying Guide

Frequently Asked Questions

Which laser receivers is the B1-LS70-80 bracket compatible with?

The Sokkia B1-LS70-80 (1030678-01) is designed specifically for the Sokkia and Topcon LS-80L and LS-80X laser receivers. It is not a universal bracket and is engineered to match the mounting geometry of these two models for a secure, play-free connection.

What type of grade rod does this bracket fit?

The B1-LS70-80 is designed to slide along the rail found on compatible LaserLine and Sokkia direct-reading grade rods. Before purchasing, confirm your rod model features the matching rail profile to ensure proper fit and smooth operation.

Is this a genuine Sokkia OEM part?

Yes. The B1-LS70-80 bracket with part number 1030678-01 is an authentic Sokkia OEM accessory sold by Express Tools as an authorized dealer. Genuine OEM parts maintain full compatibility and help protect the warranty on your receiver.

Can I use this bracket with a third-party grade rod?

The bracket is optimized for LaserLine and Sokkia-compatible grade rods with the specific rail profile it was designed around. Compatibility with third-party rods depends on whether the rod uses the same rail geometry. We recommend verifying your rod's rail specification against Sokkia's documentation or contacting our team before purchase.
