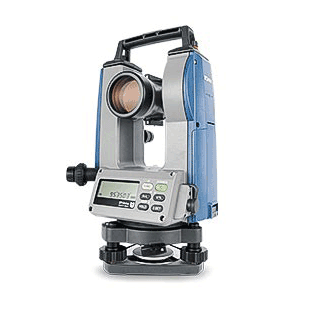

Sokkia DT750 Dual Display Digital Theodolite Kit with 7 Second Accuracy - Model

The Sokkia DT750 Digital Theodolite (model 1037809-06) is a professional-grade angle measurement instrument delivering 7-second angular accuracy in a rugged, dual-display configuration built for demanding field conditions. Replacing the discontinued Sokkia DT740, the DT750 brings improved electronics, a more ergonomic form factor, and dependable measurement performance that structural steel contractors, bridge crews, and industrial alignment specialists count on for critical layout and alignment work.

Overview & Jobsite Applications

Designed for contractors who need precise angle measurement without the complexity or cost of a total station, the DT750 excels anywhere repeatable, accurate angular data is required. Whether you're plumbing columns on a high-rise, aligning process equipment in a refinery, or running horizontal control on a bridge deck, the DT750's 7-second accuracy and intuitive dual-display readout keep your crew productive and your tolerances tight. The optical plummet ensures precise setup over established control points, and the sealed, compact body holds up to the dust, vibration, and weather exposure common on active construction sites.

Key Specifications

• Model Number: 1037809-06
• Angular Accuracy: 7 seconds (7")
• Display: Dual-sided LCD — readable from both faces of the instrument
• Horizontal & Vertical Circle: Absolute encoder, no initialization required
• Telescope Magnification: 30x
• Minimum Focus Distance: Approximately 1.0 m (3.3 ft)
• Compensation: Single-axis liquid compensator
• Plummet: Optical plummet built into alidade
• Dust & Water Protection: IP54-rated enclosure
• Battery Life: Approximately 60 hours continuous operation on standard AA batteries
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Weight: Approximately 4.5 kg (9.9 lbs) with tribrach
• Replaces: Sokkia DT740

What's in the Kit

• Sokkia DT750 Digital Theodolite (1037809-06)
• Tribrach with optical plummet
• Carrying case (hard-shell)
• AA batteries (initial supply)
• Lens cleaning cloth and brush
• Operator's manual
• Certificate of adjustment

Job Applications

Structural Steel Erection: Plumb columns and verify beam alignment during steel erection with the confidence that 7-second accuracy provides. The dual display means the rodman and instrument operator both have a clear angle readout, reducing communication errors on busy sites.

Bridge Construction & Survey Control: Run horizontal and vertical angle control across bridge decks and abutments where tolerance requirements are strict and rework is costly. The absolute encoder eliminates circle initialization delays during multi-shift operations.

Industrial Equipment Alignment: Set machinery, conveyors, and process vessels to tight angular tolerances in plant and refinery environments. The IP54 rating and wide operating temperature range keep the DT750 functional in harsh industrial conditions.

Building Layout & Grade Control: Establish perpendicular baselines, transfer benchmarks, and verify grades on commercial construction projects. The optical plummet and stable tribrach setup deliver repeatable point occupation critical for multi-day layout campaigns.

Compatible Accessories

• Sokkia Aluminum Tripod for Theodolites
• Sokkia Tribrach with Optical Plummet (Replacement)
• Sokkia Carrying Case — DT Series
• Prism Pole with Bipod for Angle Measurement
• AA Battery Pack (Bulk) for Field Instruments

Related Guides

• How to Set Up a Digital Theodolite on a Control Point
• Digital Theodolite vs. Total Station: Which Do You Need?
• Structural Steel Layout Best Practices with a Theodolite
• Understanding Angular Accuracy Specifications for Construction Instruments

Frequently Asked Questions

Does the Sokkia DT750 replace the DT740 directly?

Yes. The DT750 (model 1037809-06) is the direct replacement for the discontinued Sokkia DT740. It offers the same 7-second accuracy class with updated electronics, improved battery life, and a refined ergonomic design. All standard DT-series tribrachs and tripods remain compatible.

Does the DT750 require initialization when powered on?

No. The DT750 uses an absolute encoder for both horizontal and vertical circles, which means the instrument is ready to measure immediately after power-on with no circle initialization routine required — a significant time-saver on multi-setup days.

What is the IP rating and can the DT750 be used in rain?

The DT750 carries an IP54 rating, meaning it is protected against dust ingress and splash water from any direction. It is suitable for light rain and dusty job sites, but should not be submerged or used in heavy downpours without additional protection.

Is this a total station or a pure theodolite?

The DT750 is a pure digital theodolite — it measures horizontal and vertical angles with high precision but does not include an EDM (Electronic Distance Measurement) module. If your application requires both angle and distance measurement from a single instrument, consider pairing it with a separate EDM or upgrading to a Sokkia total station. For angle-only work such as column plumbing, alignment, and control traverses, the DT750 provides professional accuracy at a significantly lower cost than a full total station.
