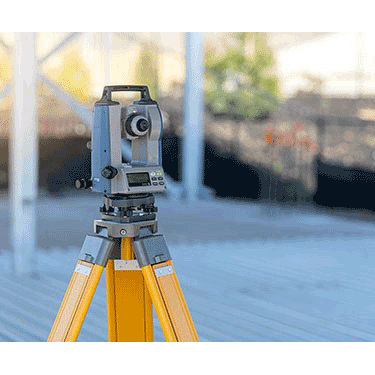

Sokkia DT750L Dual Display Digital Theodolite Kit with 7 Second Accuracy - Model 1037809-07 - Laser Pointer

Precision Angle Measurement for Demanding Survey and Layout Applications

The Sokkia DT750L digital theodolite delivers 7-second angular accuracy in a rugged, dual-display instrument built for surveyors, engineers, and contractors who demand reliable angle measurements without the complexity or cost of a full robotic total station. Whether you're setting grades, plumbing columns, or establishing control lines, the DT750L gives you fast, repeatable results in a compact package you can actually carry to the jobsite.

Instrument Overview & Jobsite Applications

Designed around the workflows of working professionals, the Sokkia DT750L combines an illuminated dual-axis display with an integrated laser pointer that speeds up target sighting and point transfer. The instrument reads horizontal and vertical angles simultaneously on both faces of the scope, eliminating the back-and-forth common with single-display models. Its sealed, waterproof housing stands up to rain, dust, and the everyday abuse of active construction sites, while the compensator keeps readings accurate even on slightly uneven setups.

Key Specifications

• Angular Accuracy: 7 seconds (7")
• Telescope Magnification: 30x
• Minimum Focus Distance: 1.0 m (3.3 ft)
• Display: Dual-sided LCD with backlight
• Compensator: Single-axis liquid tilt sensor
• Horizontal & Vertical Circle: Absolute encoding — no initialization required
• Laser Pointer: Integrated, Class II
• Battery Life: Approx. 60 hours continuous use (AA batteries)
• Waterproof Rating: IPX6
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)
• Instrument Weight: Approx. 4.6 kg (10.1 lbs) with tribrach

Key Features & What's in the Kit

• Absolute rotary encoders — power on and measure immediately, no circle indexing needed
• Integrated laser pointer for fast, hands-free point transfer to overhead or hard-to-reach targets
• Backlit dual-sided LCD displays H and V angles simultaneously for two-person crews
• Rugged IPX6-sealed housing resists rain, dust, and jobsite splash
• Standard tribrach mount compatible with most North American tripods and accessories
• Carrying case, battery pack, charger, lens cap, strap, and operator manual included
• Optical plummet built in for fast, accurate instrument centering over control points

Job Applications

Structural Steel & Column Plumbing: Use the DT750L to plumb steel columns and tilt-up panels quickly. The dual display lets a ground operator read angles while the ironworker makes adjustments — no radio chatter required.

Site Layout & Angle Layout: Establish property corners, building lines, and offset stakes with 7-second accuracy. The absolute encoder means you're measuring angles the moment power is on — no warm-up indexing cycles slowing down your crew.

Vertical Control & Monitoring: Set up the DT750L to monitor settlement, deflection, or creep on structures and retaining walls over time. Consistent angular references let you detect movement across repeated observations.

Utility & Pipeline Alignment: Align sewer runs, water mains, and conduit banks to design grade and bearing. The laser pointer transfers your line of sight to grade stakes and invert marks without a second person at the instrument.

Compatible Accessories

• Sokkia Heavy-Duty Aluminum Tripod
• Sokkia Tribrach with Optical Plummet
• Prism Pole & Bipod Set
• Replacement AA Battery Pack
• Carrying Case with Foam Insert

Related Guides

• How to Set Up a Digital Theodolite on a Control Point
• Theodolite vs. Total Station — Which Do You Need?
• Reading Horizontal and Vertical Angles on a Dual-Display Theodolite
• Plumbing Columns with a Theodolite: Step-by-Step Guide

Frequently Asked Questions

Does the Sokkia DT750L measure distances?

No. The DT750L is a pure angle-measurement instrument and does not include an EDM (electronic distance measurement) module. If you need distance measurement in addition to angles, consider a Sokkia total station. For layout work where distances are taped or chained, the DT750L is an efficient, lower-cost alternative.

What batteries does the DT750L use, and how long do they last?

The DT750L runs on standard AA alkaline batteries, which are available anywhere. Under normal field conditions you can expect approximately 60 hours of continuous use per set. The backlit display does draw additional power, so limiting backlight use will extend battery life in cold-weather operations.

Is the DT750L compatible with standard 5/8" x 11 tripods?

Yes. The DT750L mounts on a standard tribrach that accepts the universal 5/8" x 11 thread found on virtually all North American contractor tripods. The included tribrach also accepts standard Sokkia and compatible accessories for interchangeable setups.

What is the difference between 7-second and 5-second accuracy for layout work?

For most construction layout tasks — building lines, column grids, utility alignment — 7-second accuracy is more than sufficient. At 100 meters, 7 seconds of arc translates to roughly 3.4 mm of lateral error, well within the tolerance of concrete formwork or earthwork. Five-second instruments offer marginal improvement for general layout but become meaningful in high-precision monitoring or geodetic control work.
