What accuracy can I expect from the L6-20 on a typical grade or elevation shot?

The L6-20 delivers ±1/4-inch accuracy at 100 feet, which meets professional construction standards for foundation verification, grade establishment, and benchmark work. For shots under 100 feet—typical on most jobsites—your accuracy will be better than the spec.

Will the L6-20 work reliably in bright sunlight and dusty conditions?

Yes. Because it's an optical instrument without electronics or lasers, the L6-20 actually performs better in bright sunlight than laser-based systems. Dust and jobsite conditions won't degrade the optical sightline—you'll get consistent readings all day.

How does the 22-power magnification compare to other transit levels?

The 22x magnification provides clear target acquisition and reduces setup time by making rod readings quick and reliable at standard jobsite distances. It's strong enough for precision work but fast enough that you're not spending extra time per shot.

Is the L6-20 suitable for both foundation work and site grading?

Yes. The L6-20 handles foundation and pad verification, grade breaks, slope establishment, and benchmark work. It's a multipurpose instrument designed for the variety of elevation and grade work that contractors perform on light commercial and residential projects.

What maintenance does the L6-20 require, and how often do I need to recalibrate it?

Optical levels require minimal maintenance—keep the lenses clean and the instrument protected from impacts. Unlike electronic levels, the L6-20 has no batteries, no firmware, and no recalibration cycles; it's built to perform reliably for years with basic care.

Can I use the L6-20 for angle turning and layout work on structural projects?

Yes. The L6-20 includes angle turning capability for building layout, corner verification, and reference point establishment. It's not a dedicated transit, but it provides the angle functionality that general contractors need on mixed elevation and layout work.

Sokkia iM-52 PSBL 2-inch Intelligent Measurement Total Station - Dual Display & Laser Plummet (US Version) - 1023563-04

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Angular Accuracy: 2" (2 arc-seconds)
EDM Range (prism): Up to 5,000 m (single prism)
EDM Range (reflectorless): Up to 500 m (Kodak White)
EDM Accuracy (prism): ±(2 mm + 2 ppm)
EDM Accuracy (reflectorless): ±(3 mm + 2 ppm)
Display: Dual-face graphic LCD, backlit

SokkiaIM-52SKU David White L6-20 / 44-8824New

Accessories →

Sokkia iM-52 PSBL 2-inch Intelligent Measurement Total Station - Dual Display & Laser Plummet (US Version)

$7595.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Next Day Air available - $25 flat

Qty:

Up to 5,000 m (single prism) Range

Cover large layout jobs with a Up to 5,000 m (single prism) working reach.

2" (2 arc-seconds) Accuracy

Hold grade with a 2" (2 arc-seconds) accuracy rating.

Battery Life

Runs on Approx. 7 hours continuous operation for jobsite flexibility.

Authorized Sokkia Dealer

Genuine, factory-fresh Sokkia equipment with legitimate firmware and calibration documentation.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Sokkia equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this accessory?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Sokkia IM-52?

The Sokkia iM-52 PSBL 2-inch Intelligent Measurement Total Station - Dual Display & Laser Plummet (US Version) is a Sokkia professional jobsite instrument with 2" (2 arc-seconds) angular accuracy, Up to 5,000 m (single prism) edm range, and Up to 500 m (Kodak White) edm range. It's available from Express Tools as an authorized Sokkia dealer with same-day shipping on in-stock orders.

FIELD APPLICATIONS

What contractors use this accessories for

Foundation and Pad Elevation Verification

Confirm that foundation pads, grade beams, and concrete slabs are set to plan elevation before pouring. The ±1/4-inch accuracy ensures finished elevations meet structural requirements and support proper drainage and floor slope.

Grade Break and Slope Establishment

Set reference points and verify grading slopes on site work, drainage areas, and finish grades. The 22x magnification and optical sightline allow accurate rod readings across varying distances without laser alignment issues.

Benchmark and Elevation Control Transfer

Establish and verify benchmarks on renovation and retrofit projects where existing grades must be confirmed. Optical leveling performs reliably in sunlight and jobsite conditions where laser systems struggle.

Structural Layout and Angle Turning

Execute angle and turnpoint work for building layout and corner verification on small to medium projects. The level provides straightforward angle capability without the cost or setup complexity of dedicated angle instruments.

Mixed-Method Elevation Control Workflows

Use the L6-20 for initial grade establishment and verification, then transition to laser or rotating systems for production grading. This approach balances accuracy verification with crew efficiency on projects using multiple control methods.

PRODUCT OVERVIEW

Product Description

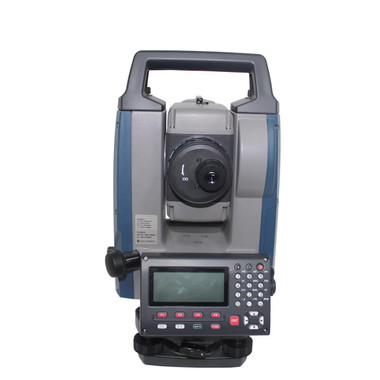

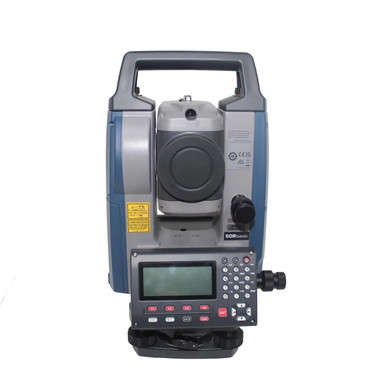

The Sokkia iM-52 PSBL (model 1023563-04) is a 2-inch accuracy total station engineered for surveyors, civil contractors, and layout crews who demand reliable, high-precision measurements day after day in the field. Built on Topcon's proven measurement platform and distributed under the trusted Sokkia brand, this instrument combines a long-range reflectorless EDM, dual-face display, and optical laser plummet into a package rugged enough for real-world jobsite conditions. Whether you're staking out a highway corridor, controlling a building structure, or running boundary surveys in rough terrain, the iM-52 PSBL gives you the measurement confidence to stay on schedule and on spec.

Jobsite Overview & Applications

The iM-52 PSBL is designed for professionals who need versatility without sacrificing accuracy. Its 2" (2-second) angular accuracy paired with a high-performance EDM makes it suitable for control surveys, topographic mapping, construction stakeout, as-built documentation, and deformation monitoring. The instrument's IP66-rated enclosure resists dust ingress and water jets, so unexpected weather or dusty grading operations won't cut your workday short. On-board storage and USB connectivity keep data management simple, reducing trips back to the office.

Key Specifications

Angular Accuracy: 2" (2 arc-seconds)
EDM Range (Prism): Up to 5,000 m (single prism)
EDM Range (Reflectorless): Up to 500 m (Kodak White)
EDM Accuracy (Prism): ±(2 mm + 2 ppm)
EDM Accuracy (Reflectorless): ±(3 mm + 2 ppm)
Display: Dual-face graphic LCD, backlit
Plummet: Optical laser plummet
Telescope Magnification: 30×
Storage: Internal memory + USB port
Battery Life: Approx. 7 hours continuous operation
Water & Dust Protection: IP66
Operating Temperature: -20°C to +50°C (-4°F to +122°F)
Weight: Approx. 5.2 kg (instrument only)

Key Features

Dual-Face Display: Full alphanumeric LCD on both faces of the instrument — measure and read data from either side without walking around the instrument
Laser Plummet: Fast, accurate setup over control points in any lighting condition
Long-Range Reflectorless EDM: Measure inaccessible targets — facades, bridge decks, elevated steel — without a prism or assistant
IP66 Protection: Sealed against dust and high-pressure water jets for reliable field performance
Onboard Programs: Road layout, offset measurement, remote elevation, area calculation, and resection built in
USB Data Transfer: Export raw data and coordinates directly to thumb drives or office software
Sokkia Link Software Compatible: Seamless data transfer and project management with Sokkia's office suite
Auto Power-Off & Tilt Compensation: Single-axis tilt sensor with auto-correction for efficient setups on sloped ground

Job Applications

Construction Layout & Stakeout: Set building corners, column lines, slab edges, and utility alignments with 2" angular precision. The dual display means your rod person can read angles directly without you calling out every value.

Boundary & Topographic Surveys: Traverse control networks, collect topo data, and calculate closures using built-in survey programs. Long prism range supports open terrain without instrument moves.

As-Built & Structural Documentation: Reflectorless mode lets you shoot floor-to-ceiling heights, facade offsets, and structural members without setting prisms — ideal for occupied buildings or elevated steel.

Deformation & Monitoring: Repeatability and stable EDM performance make the iM-52 PSBL a practical choice for periodic monitoring of retaining walls, embankments, and structures.

Compatible Accessories

Related Guides

Frequently Asked Questions

What does "PSBL" mean on the Sokkia iM-52?: PSBL stands for Prism / Short-Range Bluetooth / Laser plummet — indicating this model includes reflectorless (short-range) EDM capability and an integrated laser plummet for precise instrument centering over control points.
Is the Sokkia iM-52 the same as the Topcon iM-52?: Yes. The Sokkia iM-52 and Topcon iM-52 share the same measurement engine and core hardware. Sokkia and Topcon are sister brands under the same parent company, with minor differences in firmware interface and branding.
What software is compatible with the Sokkia iM-52?: The iM-52 PSBL is compatible with Sokkia Link office software for data transfer and project management. Raw data can also be exported via USB to third-party platforms such as AutoCAD Civil 3D, Trimble Business Center, and most survey-grade field-to-finish packages.
Does the iM-52 PSBL come with a warranty?: Sokkia instruments sold through Express Tools as an authorized dealer include the manufacturer's standard warranty coverage. Contact our team for current warranty terms and to confirm your instrument is registered for full coverage.

Why This Equipment

Authorized Dealer

Genuine, factory-fresh inventory with legitimate firmware and calibration documentation.

Same-Day Shipping

In-stock orders placed before 2PM ship same day from our Texas warehouse.

Expert Support

Call or chat with a contractor equipment specialist before and after your purchase.

Free Shipping

Free ground shipping on orders $99+ to the continental US.

KIT CONTENTS

What's In The Box

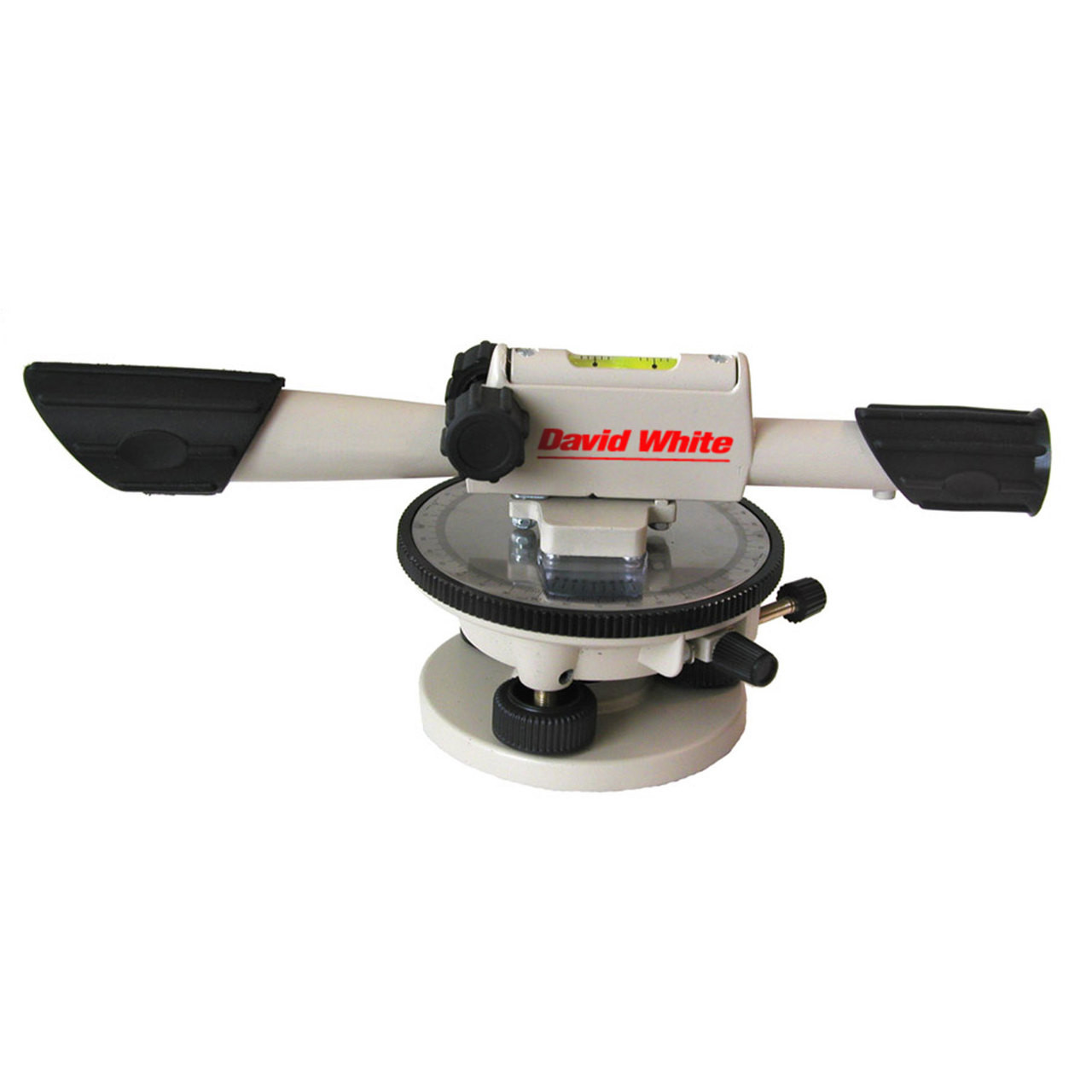

David White L6-20 Meridian Level

Why Buy This?

Professional-grade equipment, authorized dealer pricing.

The tools contractors trust on municipal infrastructure, commercial projects, and high-tolerance earthwork aren't available at hardware stores — and they shouldn't be. This equipment is engineered for professionals, and buying it through an authorized dealer means you get full manufacturer support when it matters.

Express Tools carries only factory-fresh inventory from brands contractors specify by name. No gray-market product, no import-spec units, just authentic gear with legitimate firmware and calibration documentation.

Same-day shipping on in-stock items, expert support before and after the sale, and a 30-day return window on most products. If you have questions about specs, compatibility, or applications, call us — we know this equipment.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Angular Accuracy	2" (2 arc-seconds)
EDM Range (prism)	Up to 5,000 m (single prism)
EDM Range (reflectorless)	Up to 500 m (Kodak White)
EDM Accuracy (prism)	±(2 mm + 2 ppm)
EDM Accuracy (reflectorless)	±(3 mm + 2 ppm)
Display	Dual-face graphic LCD, backlit
Plummet	Optical laser plummet
Telescope Magnification	30×
Storage	Internal memory + USB port
Battery Life	Approx. 7 hours continuous operation
Water & Dust Protection	IP66
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Weight	Approx. 5.2 kg (instrument only)
