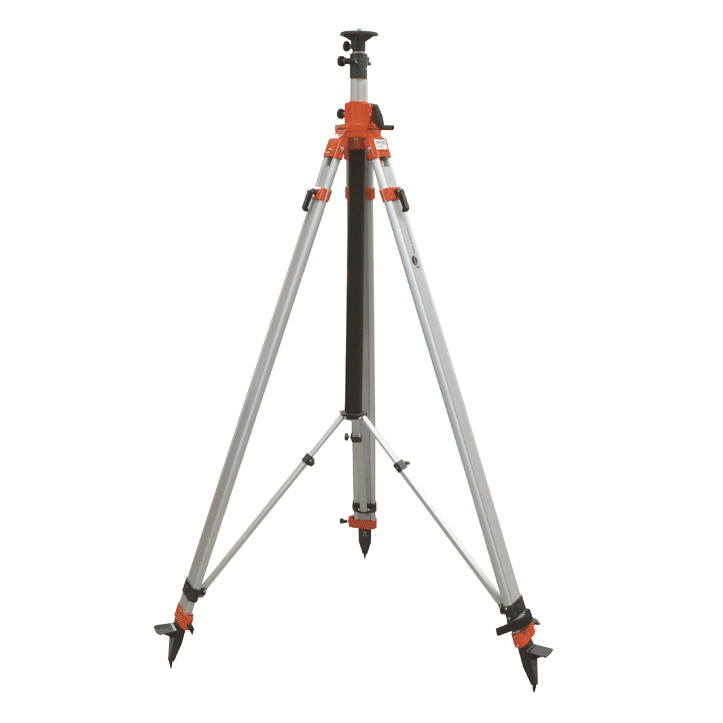

Topcon 60811 Extra Heavy-Duty Aluminum GIANT Elevating Tripod (70 to 157-inch)

Topcon 60811 Giant Elevating Tripod for Maximum Height Positioning

The Topcon 60811 is an extra heavy-duty aluminum giant elevating tripod purpose-built for contractors and surveyors who need extreme vertical reach without sacrificing instrument stability. With a working height range of 70 to 157 inches, this tripod positions total stations, laser levels, and rotating laser heads at elevations that standard tripods simply cannot achieve. Whether you are laying out tall utility structures, aligning multi-story facades, or controlling grade across a sprawling site, the 60811 delivers the elevation and rigidity your workflow demands.

Overview and Jobsite Applications

Engineered for demanding field conditions, the Topcon 60811 combines an extra-heavy-duty aluminum frame with a robust crank-driven center column that extends smoothly and locks firmly at any point in its range. The wide-stance leg design distributes load evenly across uneven terrain, keeping your instrument stable even at full extension. Its reinforced leg locking clamps resist loosening under vibration and daily field abuse. This tripod is an essential tool on large civil construction sites, utility corridor projects, bridge alignment work, and anywhere a standard tripod's height limit becomes a bottleneck.

Key Specifications

• Model: Topcon 60811
• Working height range: 70 to 157 inches (5.8 ft to 13.1 ft)
• Collapsed transport length: approximately 74 inches
• Frame material: Extra heavy-duty aluminum alloy
• Head type: Flat-top with standard 5/8" x 11 tribrach thread
• Leg locking mechanism: Heavy-duty flip-lever clamps
• Center column drive: Gear-assisted crank elevation system
• Leg spread: Wide-stance configuration for maximum base stability
• Finish: Anodized aluminum for corrosion resistance
• Compatible with: Total stations, rotating lasers, pipe lasers, optical levels

Key Features

• Extreme 157-inch maximum height for elevated instrument positioning unreachable by standard tripods
• Crank-driven elevating center column for precise, controlled height adjustment
• Extra heavy-duty aluminum construction balances high load capacity with manageable field weight
• Standard 5/8" x 11 threaded head accepts tribrachs and a wide range of surveying instruments
• Wide-stance leg geometry maximizes lateral stability at full extension
• Robust flip-lever leg clamps lock securely and withstand repeated daily use
• Anodized finish resists rust, UV degradation, and jobsite chemical exposure
• Engineered to remain rigid under instrument load at maximum elevation

Job Applications

Utility and Transmission Line Layout: Positioning a rotating laser or total station at 13 feet gives line crews clear line-of-sight across long corridor segments, reducing the number of setups required and speeding layout of pole and tower footings.

Tall Structure and Facade Alignment: Aligning curtain walls, precast panels, or structural steel on multi-story construction requires instrument elevation above ground obstructions. The 60811 clears formwork, rebar cages, and staging equipment that would block lower setups.

Large-Scale Site Control and Benchmarking: On wide open civil sites where terrain relief limits sightlines, elevating a level or total station dramatically extends the effective working radius of each instrument setup, improving efficiency on grading, drainage, and paving control.

Bridge and Elevated Infrastructure Alignment: Deck geometry control and bearing alignment on bridge projects often demands that the instrument match deck elevation from an adjacent bank or staging area. The 60811 provides the reach to make those critical sight lines possible.

Compatible Accessories

• Topcon Tribrach with Optical Plummet
• Heavy-Duty Tripod Carry Bag
• 5/8" x 11 Adapter Plates for Rotating Lasers
• Topcon GT Series Total Stations
• Topcon RL-H5A Rotating Laser Level

Related Guides

• How to Choose the Right Tripod for Your Survey Instrument
• Elevating Tripod Setup Best Practices for High-Wind Conditions
• Topcon Tripod Compatibility Guide: Matching Heads to Instruments

Frequently Asked Questions

What instruments are compatible with the Topcon 60811 tripod?

The 60811 features a standard flat-top head with a 5/8" x 11 threaded center stud, making it compatible with virtually all surveying total stations, optical levels, rotating laser levels, and pipe lasers that accept a standard tribrach or direct-mount 5/8" connection. Always verify your instrument's mounting specification before use.

How is the center column height adjusted on the 60811?

The 60811 uses a gear-assisted crank elevation system. Rotating the crank handle raises or lowers the center column smoothly throughout the 70 to 157-inch working range. Once at the desired height, the column locks firmly in position to prevent drift under instrument load.

Is the Topcon 60811 suitable for use on uneven or soft ground?

Yes. The 60811's extra-wide leg stance and adjustable leg angles allow the tripod to be set up on moderately uneven terrain. On soft ground such as loose soil or sand, standard tripod leg shoes or screw-point feet can be added to prevent leg sinkage and maintain stability at extended heights.

What is the difference between the Topcon 60811 and a standard contractor tripod?

A standard contractor tripod typically reaches a maximum height of 60 to 65 inches. The 60811 is purpose-designed for applications where that height is insufficient, extending to 157 inches — more than double the reach of a standard unit. It also features a heavier-duty frame, wider leg spread, and the crank-driven column that standard fixed-leg tripods lack entirely.
