Spectra Precision LP50 Laser Pointer 5-BEAM

Overview

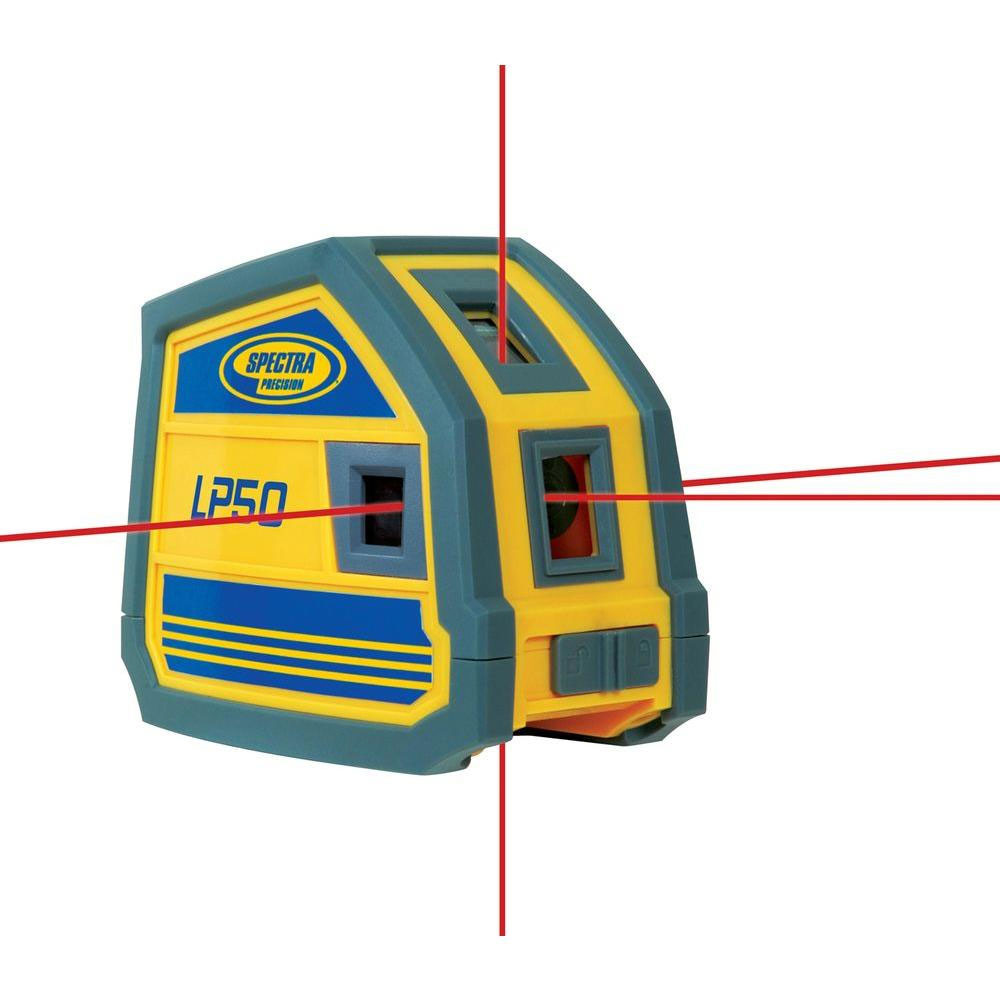

The Spectra Precision LP50 is a compact, self-leveling 5-beam laser designed for fast, accurate positioning on job sites where space is limited and precision matters. This professional-grade laser pointer projects five distinct beams—one vertical up, one vertical down, and three horizontal beams at 90-degree intervals—enabling simultaneous layout work in multiple directions without constantly repositioning your tool. At just $194.65, the LP50 delivers exceptional value for contractors, electricians, HVAC installers, and finish carpenters who need reliable reference points for installation and alignment tasks.

Built for real-world job site conditions, the LP50 features automatic self-leveling within ±4 degrees, eliminating the guesswork and setup time associated with manual leveling. The bright, visible laser beams work effectively in typical indoor lighting conditions, while the compact footprint means you can position the tool in tight spaces—on scaffolding, in corners, or along narrow walls—where traditional rotating lasers simply won't fit. The magnetic base attachment provides versatile mounting options on metal studs, pipes, and steel framing, while the standard ¼-20 thread accepts tripods and extension poles for elevated positioning.

What sets the LP50 apart from single-beam laser pointers is its multi-directional capability. The three horizontal beams create a complete 270-degree reference plane around the tool, perfect for aligning cabinets, running electrical conduit, or establishing consistent heights across multiple walls. Meanwhile, the dual vertical beams (up and down) let you transfer points from floor to ceiling or verify plumb installations—all simultaneously, dramatically reducing the time spent on layout and positioning tasks.

Key Specifications

• Beam Configuration: 5 beams total (1 vertical up, 1 vertical down, 3 horizontal at 90° intervals)
• Accuracy: ±1/4 inch at 30 feet (±6mm at 10m)
• Self-Leveling Range: ±4 degrees with visual and audible out-of-level alert
• Working Range: Up to 50 feet (15m) diameter
• Laser Class: Class 2, <1mW, 635nm red laser diode
• Power Source: 3 AA alkaline batteries (included)
• Battery Life: Up to 20 hours continuous operation
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Mounting Thread: ¼-20 tripod thread
• Magnetic Base: Integrated rare-earth magnet mounting system
• Durability: IP54 dust and water resistance rating
• Dimensions: 3.9 x 3.5 x 2.8 inches
• Weight: 0.95 lbs (430g) with batteries
• Warranty: 3-year manufacturer warranty

What's in the Kit

• Spectra Precision LP50 5-Beam Laser Pointer
• Magnetic wall mount with ¼-20 thread adapter
• 3 AA alkaline batteries (pre-installed)
• Protective soft carrying case
• Quick start guide and safety information
• 3-year warranty registration card

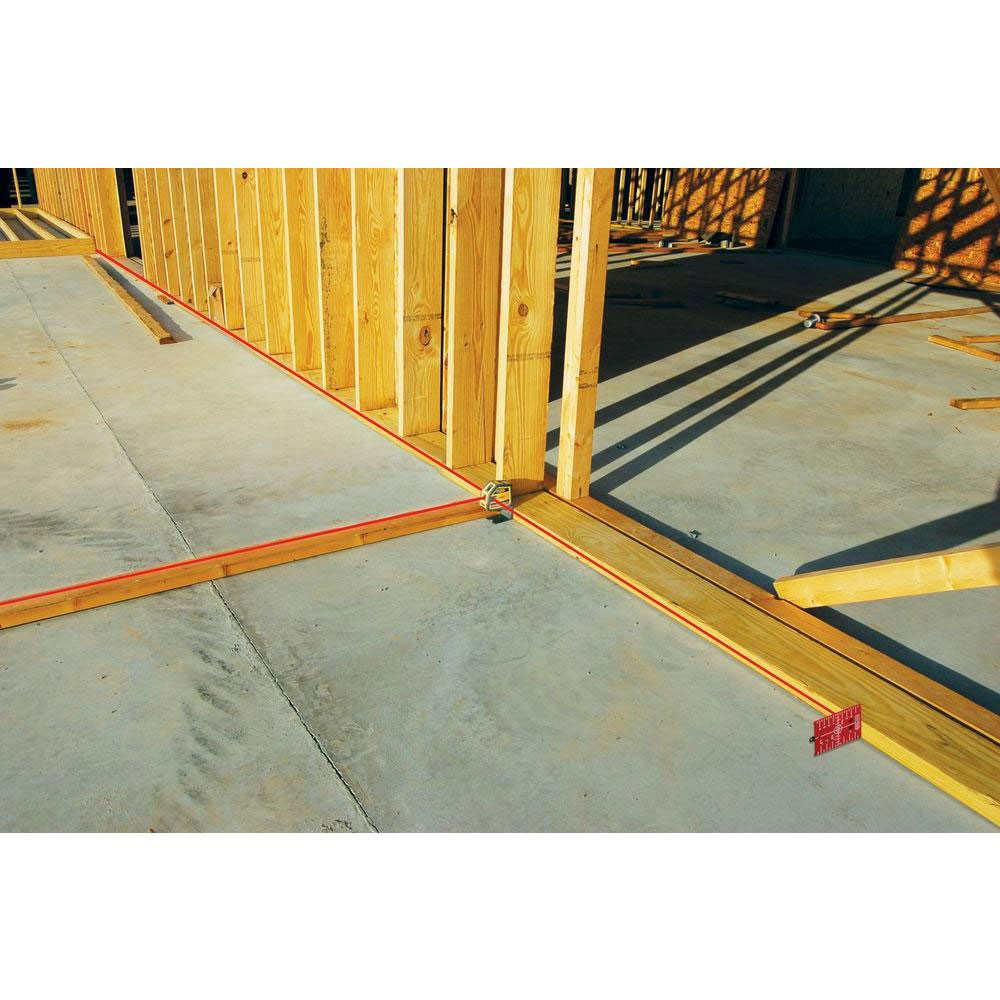

Job Applications

• Cabinet and Millwork Installation: The three horizontal beams create continuous level reference lines around corners and across multiple walls, ensuring upper and lower cabinet runs align perfectly without repeated measurements. The vertical beams help establish plumb positioning for tall cabinet stacks and verify reveal consistency.
• Electrical Rough-In and Conduit Runs: Maintain consistent mounting heights for outlet boxes, switches, and junction boxes across entire rooms or buildings. The 270-degree horizontal coverage lets electricians mark multiple wall locations simultaneously, while the magnetic base attaches directly to metal studs and electrical panels for hands-free operation.
• HVAC Ductwork and Pipe Installation: Level and align duct runs, refrigerant lines, and drainage pipes with confidence. The compact size fits into tight ceiling spaces and mechanical rooms where larger rotating lasers can't operate effectively. The magnetic base secures to metal ductwork and pipe hangers for stable positioning during installation.
• Drop Ceiling and Grid Layout: Transfer points from perimeter walls to establish grid runner heights, ensuring flat, level ceiling installations. The vertical up/down beams help align grid intersections with reference points on walls and columns, while the horizontal beams mark consistent border heights around the entire room.
• Interior Finish and Trim Work: Install chair rails, wainscoting, crown molding, and picture rails at uniform heights throughout multi-room projects. The multiple horizontal beams eliminate the need to move a single-beam laser repeatedly, cutting layout time by more than half while improving accuracy and consistency.
• Tile and Wall Covering Installation: Establish level starting courses for tile work and identify high/low spots in wall surfaces before installation begins. The vertical beams create plumb references for ensuring tile columns and wallpaper seams run true, while horizontal beams guide grout line alignment across expansive wall areas.

Compatible Accessories

• Spectra Precision Adjustable Tripod (1280): Extends from 3.6 to 6 feet for elevated positioning and improved beam visibility over obstacles
• Laser Enhancement Glasses: Improve beam visibility in bright ambient light conditions and extend effective working range
• Spectra Extension Pole (various lengths): Reach ceiling heights and position the laser at optimal working elevations
• Magnetic Target Plate Set: Attach to metal surfaces to create highly visible reference points for beam alignment
• Laser Detector/Receiver: Extend usable range beyond 50 feet for larger job site applications
• Universal Laser Mount Bracket: Secure attachment to wood studs, drywall, and non-magnetic surfaces

Related Guides

• How to Choose the Right Laser Level for Your Trade
• Laser Level Accuracy: Calibration and Maintenance Tips
• Point Lasers vs. Line Lasers vs. Rotary Lasers: Which Do You Need?
• Laser Safety on the Job Site: Best Practices for Class 2 and Class 3 Tools

FAQ

Can the LP50 be used outdoors?

While the LP50 is built with IP54 dust and water resistance for job site durability, the red laser beams are optimized for indoor use where they remain visible up to 50 feet. For outdoor applications or bright sunlight conditions, you'll need a laser detector/receiver to locate the beams beyond the visible range, or consider a green beam laser which offers better visibility in bright conditions.

How does the self-leveling feature work, and what happens if the tool is bumped?

The LP50 uses a pendulum-based self-leveling mechanism that automatically levels the tool within ±4 degrees of level. If the laser is moved, bumped, or placed on an out-of-level surface beyond 4 degrees, both visual indicators and an audible alarm alert you that the beams are no longer accurate. Simply reposition the tool on a more level surface, and it will automatically re-level and resume normal operation within seconds.

What's the difference between this 5-beam laser and a rotating laser level?

The LP50 projects five fixed laser points/beams simultaneously, making it ideal for point-to-point alignment, transfer work, and reference positioning in confined spaces. Rotating lasers sweep a 360-degree laser line around the entire room and typically offer longer range (300+ feet) but are larger, more expensive, and unnecessary for many interior installation tasks. The LP50's compact size and multi-beam configuration provide faster setup for close-range layout work where you need several reference points visible at once.

How long do the batteries last, and are rechargeable batteries compatible?

With standard alkaline AA batteries, expect approximately 20 hours of continuous operation. The LP50 is also compatible with NiMH rechargeable AA batteries, though runtime may be slightly reduced (typically 15-18 hours depending on battery capacity and condition). The tool features a low-battery indicator that alerts you when power is running low, preventing unexpected shutdowns during critical layout work. Many contractors keep spare batteries on hand for all-day operation without interruption.
