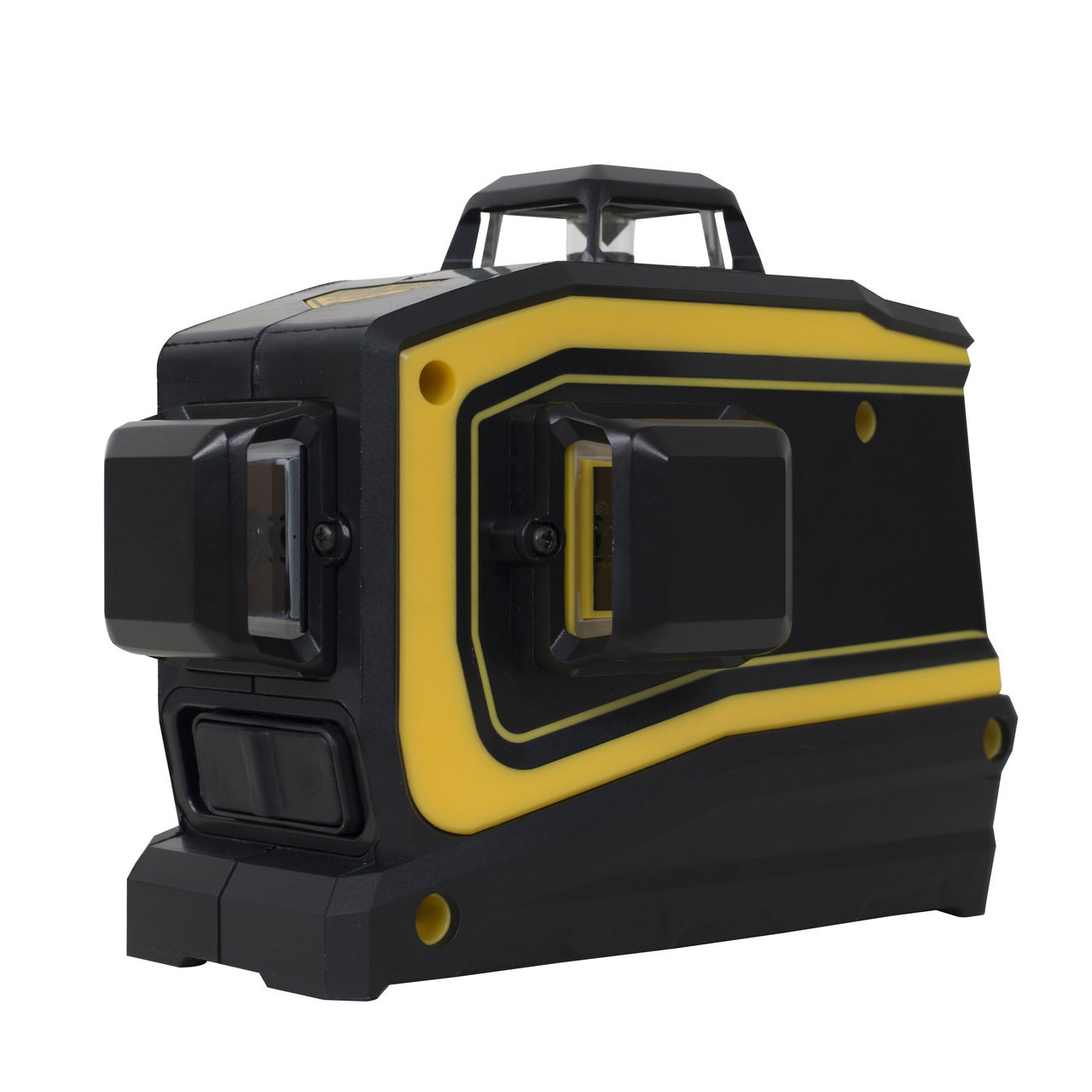

Spectra Precision LT58G Universal Laser Layout Tool with Green Beams

Overview

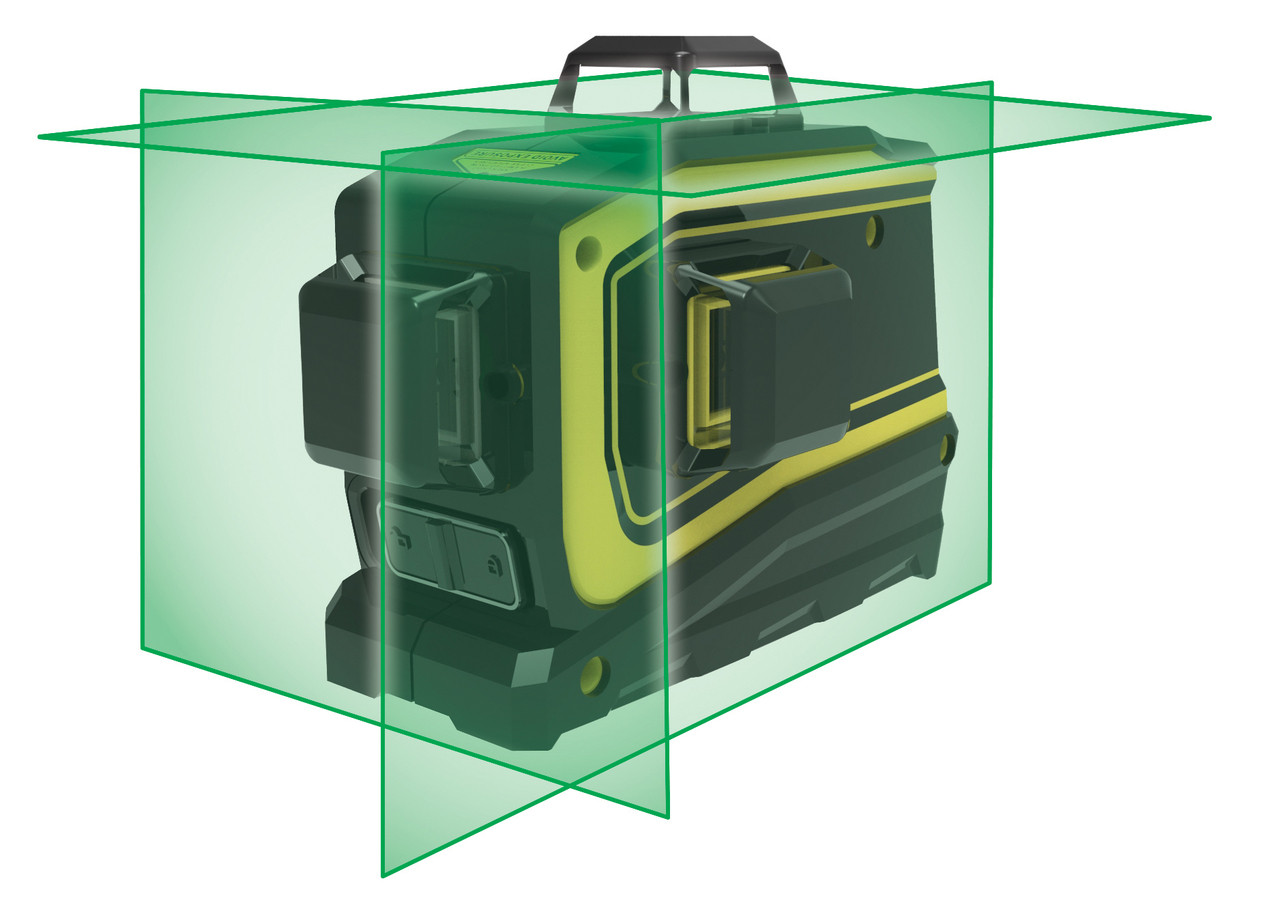

The Spectra Precision LT58G Universal Laser Layout Tool delivers professional-grade accuracy for commercial and residential construction projects where precision matters. This advanced 3-plane green beam laser system projects one horizontal and two vertical laser planes simultaneously, eliminating the need for constant repositioning and dramatically reducing layout time on framing, drywall, electrical, and HVAC installations.

Green beam technology offers superior visibility compared to traditional red lasers, cutting through bright ambient lighting and sunlight-filled jobsites with exceptional clarity. Whether you're working in a sun-drenched renovation space or a well-lit commercial building, the LT58G's green beams remain visible up to 4x farther than red lasers in bright conditions, allowing you to work faster and with greater confidence.

Built for the demands of professional contractors, this laser layout tool combines durability with versatility. The self-leveling mechanism ensures accuracy within ±1/8 inch at 30 feet, while the rugged construction withstands the bumps, drops, and dust that come with daily jobsite use. At just $738, the LT58G provides exceptional value for contractors who need reliable, high-visibility layout capabilities without the premium price tag of competing systems.

Key Specifications

• Beam Color: Green (532nm wavelength)
• Laser Planes: 3 total — 1 horizontal, 2 vertical
• Self-Leveling Range: ±4 degrees
• Leveling Accuracy: ±1/8 inch at 30 feet
• Working Range: Up to 200 feet diameter (100-foot radius) with detector
• Visible Range: Up to 100 feet without detector in moderate lighting
• Power Source: Rechargeable lithium-ion battery
• Battery Runtime: Up to 16 hours continuous operation
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• IP Rating: IP54 (dust and water splash resistant)
• Mounting: 1/4-20 and 5/8-11 threaded mounts
• Weight: 3.5 lbs (1.6 kg)
• Warranty: 3-year manufacturer's warranty

What's in the Kit

• LT58G 3-plane green beam laser layout tool
• Rechargeable lithium-ion battery pack
• AC battery charger with power cord
• Heavy-duty protective carrying case

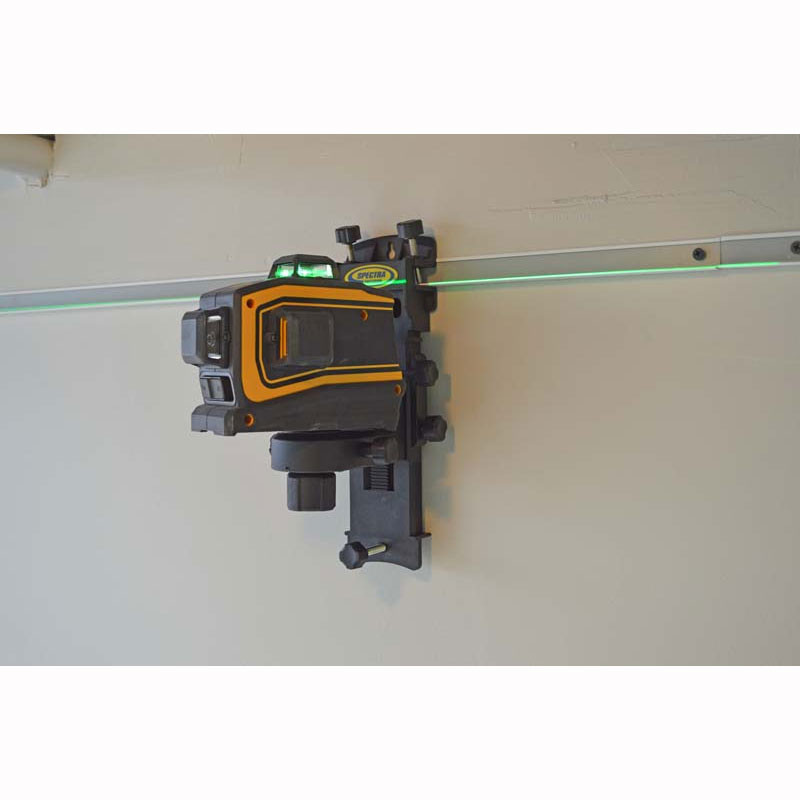

• Magnetic wall mount bracket
• Laser safety glasses (green beam compatible)
• Quick start guide and operation manual
• Calibration certificate

Job Applications

• Interior Framing and Layout: Project plumb vertical lines on opposite walls simultaneously to establish accurate wall positions, door openings, and partition locations. The dual vertical planes eliminate repositioning, cutting layout time in half compared to single-plane lasers and ensuring perfect 90-degree corners for framing crews.
• Electrical and Plumbing Rough-In: Align outlet boxes, switches, and fixture locations at consistent heights across entire rooms using the horizontal plane. The green beam's superior visibility in partially lit spaces helps electricians and plumbers maintain precision even when working in areas without full lighting, reducing callbacks for misaligned installations.

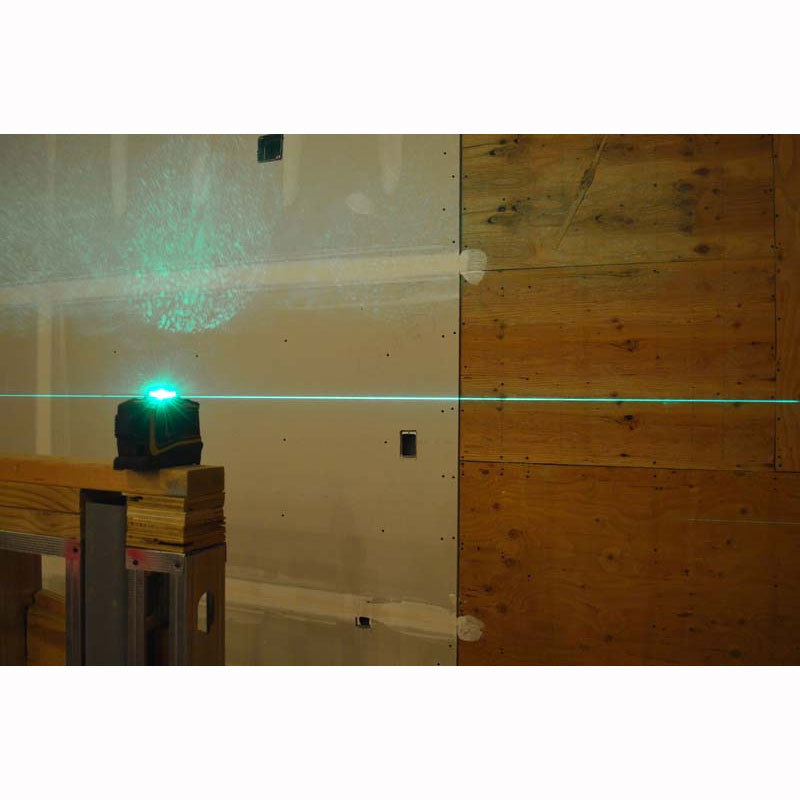

• Drywall and Paneling Installation: Establish level reference lines for panel edges and create perfect plumb lines for vertical seams. The bright green beams remain visible across large wall surfaces even with work lights on, allowing drywall crews to maintain continuous workflow without stopping to check measurements, increasing productivity by up to 30%.

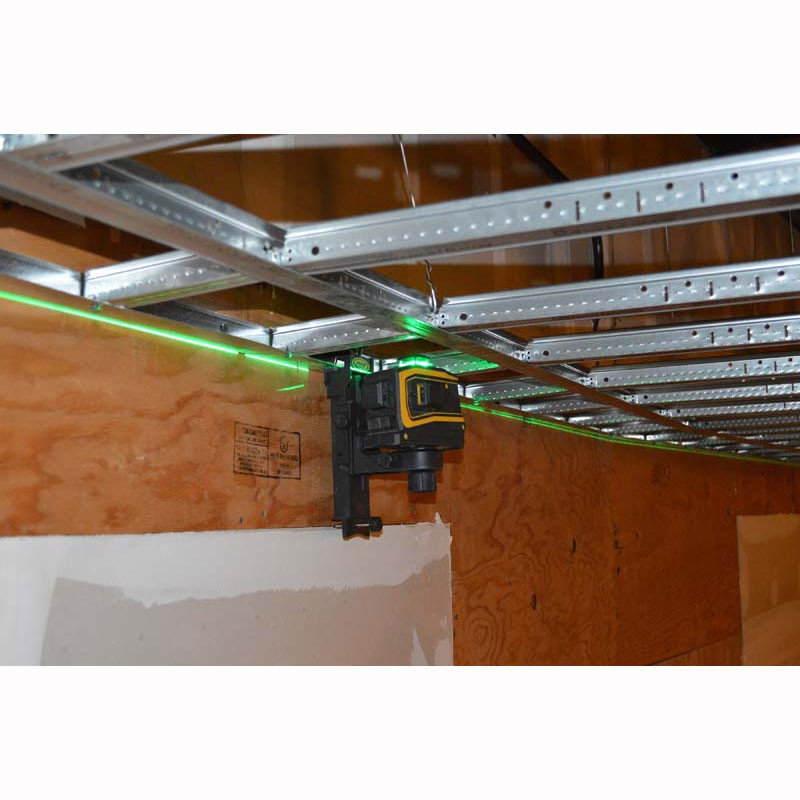

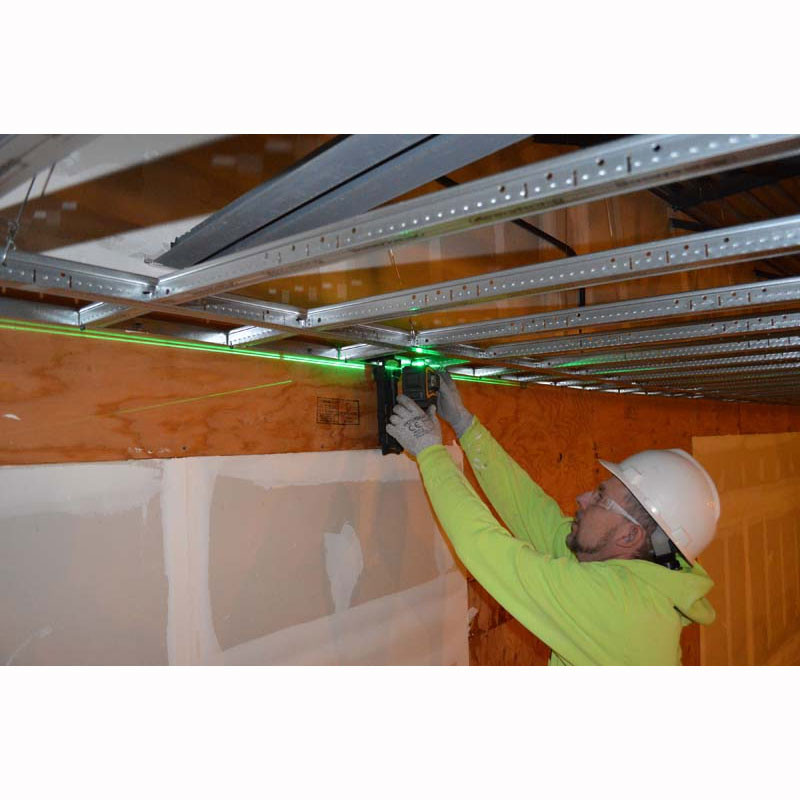

• Drop Ceiling and Soffit Installation: Project level horizontal planes across entire rooms to ensure consistent ceiling heights and proper grid alignment. The 200-foot diameter working range means one setup covers most commercial spaces, while the green beam penetrates the varied lighting conditions typical during ceiling installation.
• Tile Layout and Flooring: Create perpendicular reference lines for tile layout, ensuring patterns remain square and centered throughout installation. The self-leveling horizontal plane establishes a constant height reference for achieving level floors, while vertical planes guide wall tile alignment and ensure plumb subway tile patterns.
• Cabinet and Millwork Installation: Position upper and lower cabinets at precise heights while using vertical planes to align cabinet faces and ensure plumb installation. The green beam's visibility in kitchen and bathroom settings with mixed natural and artificial light helps finish carpenters achieve showroom-quality results efficiently.

Compatible Accessories

• Spectra Precision CR700 Laser Detector: Extends working range to 200-foot diameter for outdoor applications and large commercial spaces
• Heavy-Duty Elevator Tripod: Adjustable 3.5-ft to 12-ft height range for ceiling work and large-area layout

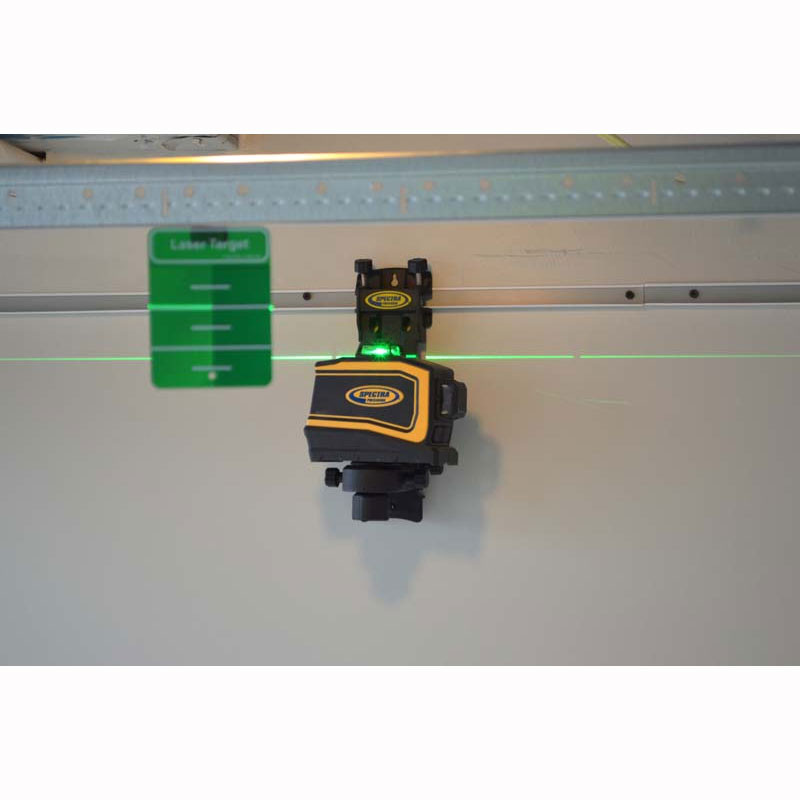

• Magnetic Target Plates: High-visibility targets for long-distance alignment and two-person layout tasks
• Universal Pole Clamp: Securely mount laser to grade rods, poles, and pipes for versatile positioning
• Replacement Battery Pack: Swap batteries for continuous all-day operation on demanding projects
• 12V Vehicle Charger: Charge batteries in your truck between jobsites
• Rotary Laser Detector Clamp: Attach detector to measuring rods for outdoor grade work

Related Guides

• Green vs. Red Laser Technology: Which Is Right for Your Jobsite?
• How to Verify and Maintain Laser Level Accuracy
• Professional Layout Techniques Using Multi-Plane Lasers
• Laser Safety Best Practices for Construction Professionals

FAQ

How much brighter are green laser beams compared to red lasers?

Green lasers appear up to 4x brighter than red lasers to the human eye in daylight conditions because our eyes are more sensitive to green wavelengths (532nm). This means the LT58G remains visible in bright jobsite conditions where red lasers become difficult or impossible to see, significantly extending your working range in ambient light without requiring a detector.

Can I use this laser outdoors for site layout or deck building?

Yes, the LT58G works outdoors when paired with a compatible laser detector like the Spectra Precision CR700. While the green beams are more visible than red in bright conditions, direct sunlight still washes out any visible laser line beyond 30-40 feet. The detector extends your working range to 100-foot radius outdoors by electronically sensing the laser plane and providing audio/visual feedback for accurate positioning.

What happens if the laser gets bumped or knocked during use?

The LT58G features automatic self-leveling that continuously adjusts to maintain accuracy within its ±4-degree leveling range. If the laser is bumped beyond this range or moved significantly, it will emit an audible alert and the laser beams will blink to indicate it's out of level. Simply reposition the laser within the self-leveling range, and it will automatically recalibrate within seconds.

How long does the battery last on a typical workday?

The rechargeable lithium-ion battery provides up to 16 hours of continuous operation with all three planes active, which exceeds most workdays. Battery life varies based on temperature (cold reduces runtime), how many planes you're using (single plane extends life), and whether you're using pulse mode with a detector. For extended multi-day projects, consider purchasing a backup battery pack for uninterrupted operation.
