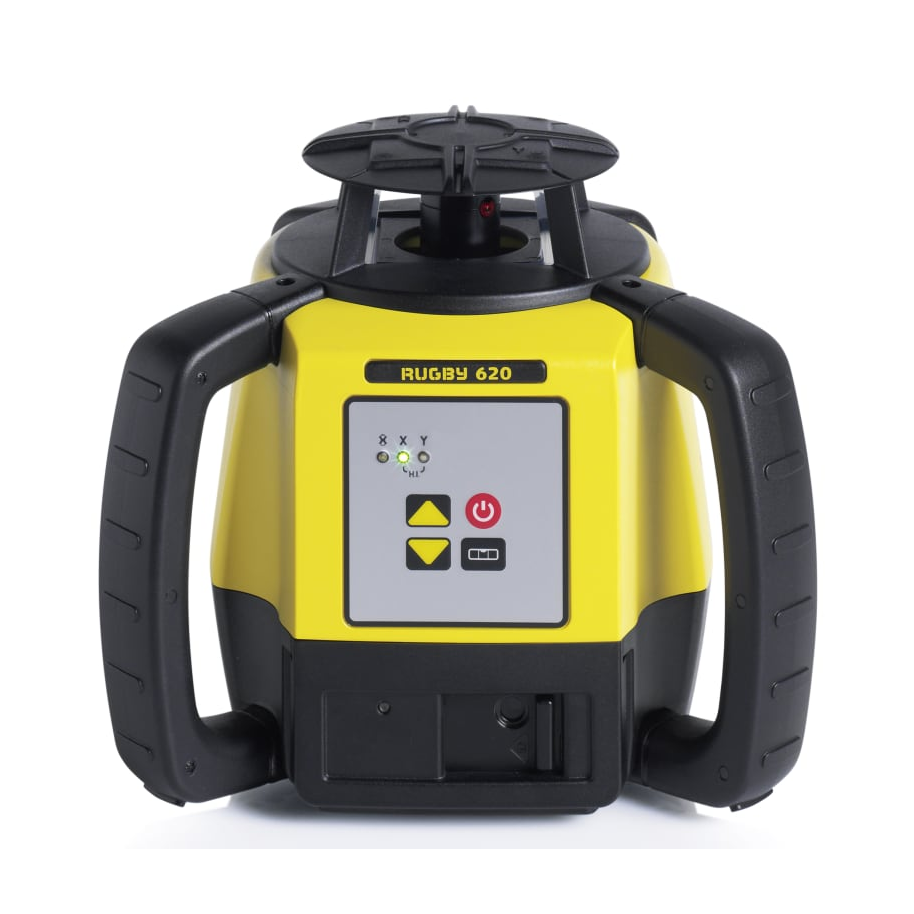

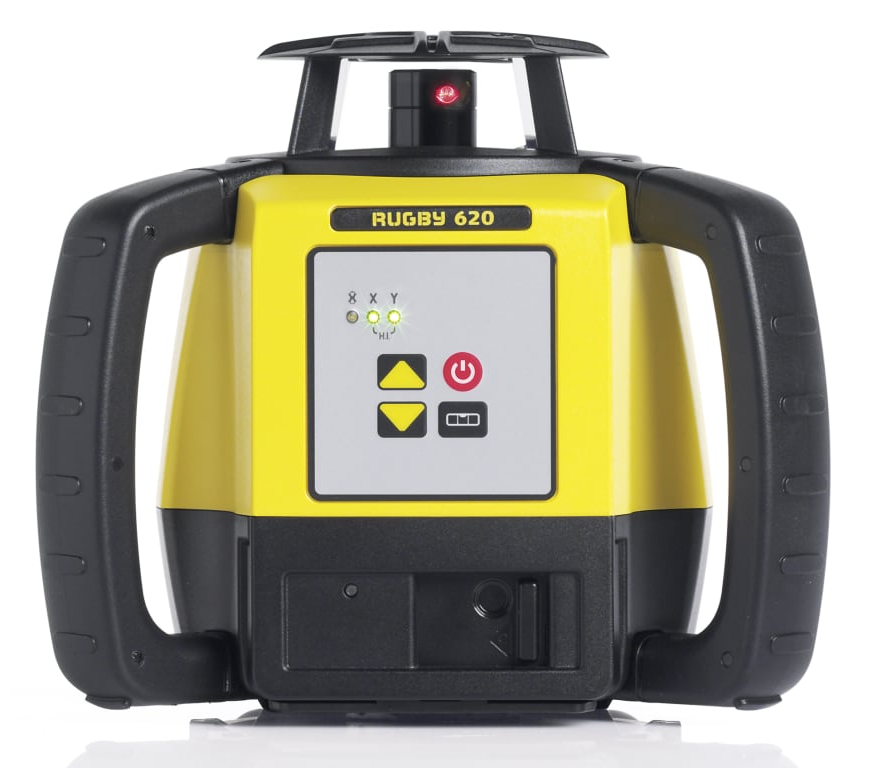

Leica Rugby 620 Red Beam Rotary Laser Package (6005983) with Deluxe RE140 Receiver - Alkaline

The Leica Rugby 620 Red Beam Rotary Laser (SKU: 6005983) is an industrial-grade rotating laser engineered specifically for concrete, formwork, and heavy construction environments. With a 3600-foot diameter operating range and a full IP67 protection rating, this instrument is built to perform when job conditions are at their worst — standing water, washdowns, concrete dust, and high-humidity pours included. Whether you're setting form grades on a foundation wall or establishing elevation control across a large slab, the Rugby 620 delivers the reliability and durability that production contractors demand.

Overview & Jobsite Applications

The Rugby 620 occupies a purpose-built position in the Leica Rugby lineup — a high-range, tough-body red beam laser matched with the RE140 digital receiver for accurate outdoor detection. It self-levels within ±5° and locks out of level to alert operators when the instrument has been disturbed. The rotating red beam operates at selectable speeds to match scanning, alignment, and receiver-detection tasks. This is a tool sized for commercial concrete flatwork, tilt-up construction, structural framing, and civil site grading where range and robustness matter more than green beam visibility in direct sunlight.

Key Specifications

• Model / SKU: Leica Rugby 620 / 6005983
• Beam Color: Red
• Operating Range: Up to 3600 ft (1100 m) diameter with receiver
• Self-Leveling Range: ±5°
• Leveling Accuracy: ±1.5 mm @ 10 m (±1/16 in @ 30 ft)
• Rotation Speed: Selectable — 150, 300, 600 RPM
• IP Rating: IP67 — fully dustproof, immersion resistant to 1 m
• Power Source: Alkaline batteries or rechargeable pack (NiMH)
• Battery Life: Up to 55 hours (alkaline, 300 RPM)
• Included Receiver: RE140 Digital Rod Eye
• Tripod Thread: 5/8 in x 11
• Weight: Approx. 1.95 kg (4.3 lbs)

Key Features

• IP67 Sealed Housing: Rated against complete dust ingress and temporary immersion — survives concrete washdowns and rain delays without sealing the instrument in a case

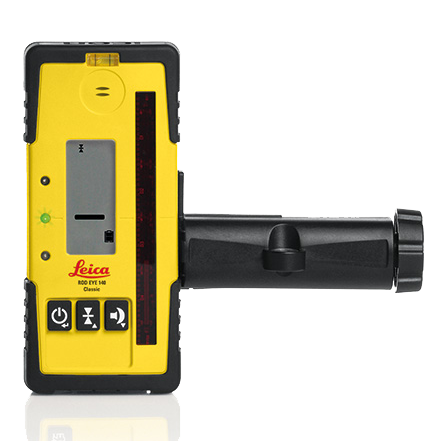

• RE140 Receiver Included: Digital rod eye with dual-sided display and audible signal for accurate grade work at extended distances
• Selectable Rotation Speed: 150 RPM for scanning, 300 RPM for standard leveling, 600 RPM for fast receiver detection
• Out-of-Level Alert: Locks beam rotation and signals the operator if the instrument is bumped beyond its self-leveling range
• Long Battery Life: Up to 55 hours on standard alkaline cells reduces battery changes during full-day concrete pours
• Leica Build Quality: Shock-resistant housing with magnesium die-cast internal frame engineered to survive drops and rough handling on active jobsites

Job Applications

• Concrete Formwork: Set and verify form heights across large foundation and wall form layouts with consistent elevation reference from a single instrument setup
• Slab-on-Grade Flatwork: Establish floor elevation benchmarks for screeding and floating large commercial slabs where extended range reduces instrument moves
• Structural Framing: Transfer elevation from benchmark to layout points across multi-bay steel or wood framing with the RE140 receiver clipped to columns or studs
• Site Grading & Drainage: Control cut and fill elevations on civil grading work, parking lots, and utility corridors — the 3600-ft range covers large sites from a single setup

Compatible Accessories

• Leica RE140 Replacement Digital Receiver
• Leica GHT61 Aluminum Grade Rod with Receiver Bracket
• Leica TRI70 Heavy-Duty Tripod
• Leica NiMH Rechargeable Battery Pack for Rugby Series
• Leica Rugby Carry Case & Foam Insert

Related Guides

• How to Set Up a Rotary Laser for Concrete Formwork
• Red Beam vs. Green Beam Rotary Lasers: Which Do You Need?
• Understanding IP Ratings for Construction Lasers
• Leica Rugby Series Comparison: 610, 620, 640, and 680

Frequently Asked Questions

Does the Leica Rugby 620 work outdoors in daylight?

The Rugby 620 uses a red beam, which is best detected outdoors using the included RE140 receiver rather than visual sighting. For direct beam visibility in bright sunlight, a green beam model would be preferred — but for grade work with a receiver at 3600-ft range, the red beam and RE140 combination performs reliably in full daylight conditions.

What does the IP67 rating mean in practice for a concrete jobsite?

IP67 means the instrument is fully sealed against dust and can withstand immersion in up to 1 meter of water for 30 minutes. On a concrete jobsite, this translates to direct hose washdown capability, operation through heavy rain, and exposure to concrete slurry and fine aggregate dust without damaging the internal optics or electronics.

Is the RE140 receiver included with the Rugby 620 6005983?

Yes. The Leica Rugby 620 kit (SKU 6005983) includes the RE140 Digital Rod Eye receiver, which provides dual-sided display readout and audible grade indication. It is compatible with all Rugby series rotary lasers and mounts to standard grade rods via the integrated bracket clamp.

What tripod is recommended for the Leica Rugby 620?

The Rugby 620 uses a standard 5/8 in x 11 tripod thread, compatible with most professional construction tripods. Leica's TRI70 aluminum tripod is a common pairing for jobsite use, but any heavy-duty contractor tripod with a 5/8-11 head will accept the instrument securely.
